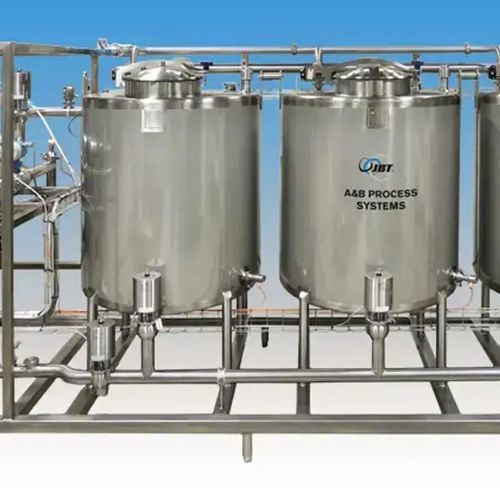

Stainless steel clean-in-place unit READYGo™ CIP

Overview
The A&B Process Systems READYGo™ CIP skid is a compact, skid-mounted Clean-in-Place system engineered for industrial and sanitary cleaning applications. Available in three flow rates and up to four tanks per flow rate (12 model configurations), the READYGo™ CIP range is designed for efficient transport and rapid on-site installation.

Key features (summary)

• Standard wash recipe included; user-configurable recipes
• Up to eight interlock inputs/outputs for process integration
• Complete standard documentation package
• Lower upfront capital compared with custom solutions
• Repeatable cleaning cycles to help maintain product quality
• Accurate instrumentation for performance monitoring and control
• In-line heating or steam heating options available
• Pre-insulated heat exchanger and steam/condensate lines for safety and heat conservation
• Connection ports for chemical dosing

Details

• Skid-mounted, compact design for trailer-compatible transport
• Hygienic centrifugal pumps, single-seat valves, shell-and-tube heat exchangers
• Instrumentation and controls for system monitoring
• Steam heating supporting discharge temperatures up to 180 °F
• Easy valve and component access for maintenance and replacement
• Manway-accessible tanks
• 304L stainless steel tanks with 316L stainless sanitary tubing
• PLC/HMI: Allen Bradley 5069 CompactLogix

Versions

• Tank sizes: 200, 290 or 500 gallon
• Number of tanks: 1–4 per skid
• Three flow rates × up to four tanks per flow (12 configurations)

Service
A&B Process Systems offers lifecycle service and support to maximize uptime, optimize performance, control costs and extend equipment life. Services include preventive maintenance, spare parts, remote and on-site technical support, and proactive service agreements tailored to your operations.

Technical features / specifications

• Product family: A&B Process Systems READYGo™ CIP skid
• Mounting: Frame-mounted skid, trailer-compatible
• Materials: 304L tanks; 316L sanitary tubing
• Pumps & valves: Hygienic centrifugal pumps; single-seat valves
• Heat exchange/heating: Shell-and-tube heat exchangers; in-line and steam heating (up to 180 °F); pre-insulated exchanger and steam/condensate lines
• Control & instrumentation: Accurate instrumentation; Allen Bradley 5069 CompactLogix PLC/HMI
• Electrical I/O: Up to eight interlock inputs/outputs
• Chemical handling: Connection ports for dosing
• Maintenance: Easy access to valves and components; manway-accessible tanks
• Process control: Standard and user-configurable wash recipes; temperature monitoring throughout cycle
