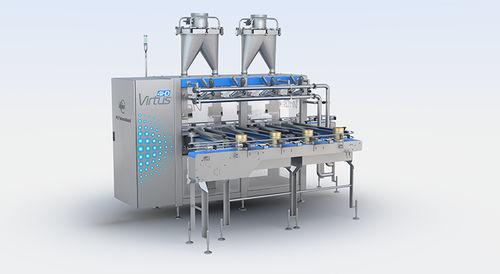

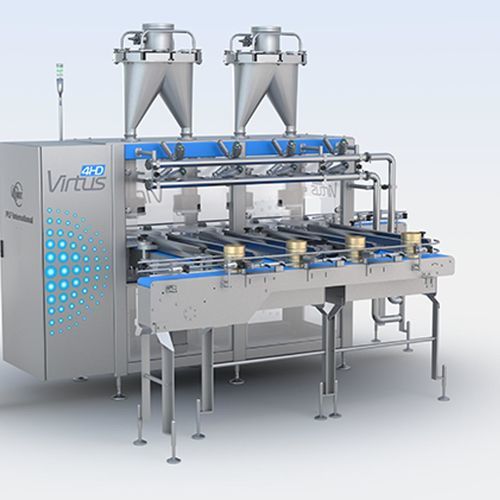

Automatic filling machine PLF Virtus™

for plastic bottlescanfor glass containers

Overview
Designed for filling milk-based nutritional powders including infant formula and specialised medical nutrition. Modular inline vacuum filler for cans, glass, plastic and PET at speeds up to 180 cans per minute with 1, 2, 3, 4 or 6 head configurations.

Key benefits

• Eliminates product contamination risk due to no moving parts in product contact
• Hygienic EHEDG-compliant design for clean-room use with milk powders
• Gentle powder handling to minimise product degradation
• Lowest powder giveaways and dust-free filling environment
• Low maintenance, easy cleaning and rapid changeovers
• Modular platform handling multiple container types and sizes
• Individual head weight adjustment for precise weight control

Product information
Developed by PLF's experienced team, the Virtus features a patent-pending nozzle that delivers up to 3× higher throughput per head versus previous machines. The vacuum filling principle has no moving parts in contact with the product, reducing contamination risk and powder breakdown compared with auger systems. The design shortens changeover and cleaning times, maximises yield and lowers operating costs.

Sustainability

• Approx. 50% reduction in electrical demand compared with rotary fillers
• Approx. 20% reduction in compressed air demand
• Approx. 30% reduction in machine footprint

Details

• All surfaces designed for easy cleaning, following EHEDG principles to avoid contamination traps
• 304 stainless steel open-section frame; product-contact parts in 316 stainless steel and FDA-approved materials
• Cable trays and cabinets mounted with spacing for hygienic cleaning
• Continuous welds, rounded corners, no exposed threads or hollow bodies
• ViwaTeq low-adhesion stainless steel treatment on product contact parts for easier cleaning
• ATEX approved for use in hygienic, potentially explosive zones

Versions & Options

• Available in 1, 2, 3, 4 and 6 head models
• Configurable options to achieve up to 180 cans per minute depending on setup
• JBT Marel iOPS capability for real-time equipment and process performance analysis
• Multiple nozzle types available to suit different powders and containers
• Optional PLF In-Line Gassing system to reduce oxygen and extend shelf life

Downloads
Title | Size | Document
JBT Marel PLF Virtus™ In-line Vacuum Powder Filler - EN | 4.1MB | PDF available

Technical specifications

• Model name: PLF Virtus™
• Applications: milk-based nutritional powders, infant formula, specialised medical nutrition
• Available heads: 1, 2, 3, 4, 6
• Maximum speed: up to 180 cans per minute (dependent on configuration)
• Nozzle: patent-pending design providing up to 3× throughput per head
• Filling principle: inline vacuum filling with no moving parts in product contact
• Frame/materials: 304 SS open-section frame; 316 SS and FDA-approved product contact parts
• Surface treatment: ViwaTeq low-adhesion stainless steel on product contact parts
• Hygiene: EHEDG-compliant design, continuous welds, rounded corners, no exposed threads
• Maintenance: low maintenance, easy to clean, cable trays spaced for cleaning
• Safety/standards: ATEX approved
• Control & data: JBT Marel iOPS capability available
• Optional: PLF In-Line Gassing system
