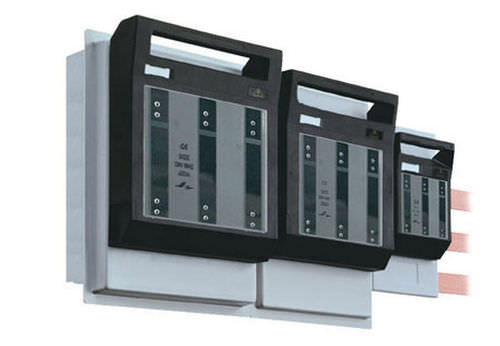

Automatic disconnect switch fuselow-voltagebusbar-mounted
Add to favorites
Compare this product
Characteristics
- Type
- automatic, fuse
- Voltage level
- low-voltage
- Other characteristics
- busbar-mounted
Description
T1401700, LTL1-3/9/100/AU
LV HRC fuse switch-disconnector acc.to EN 60947-3 with swing-in device for supporting LV HRC fuse-links acc. to DIN 43620
cable connection below with flat terminal M10
electrical parameters AC690V, 250A,
Rated conditional short-circiut current 50kA, (with fuse-links gG)
Rated insulation voltage AC750V
Rated impulse withstand voltage 8V
Rated making capacity/Utilization category AC22B (690V);
for fuse-links acc. to IEC/EN 60269-2-1 Gr.1 up to 23W power drain;
Type of protection IP20 front side, device fitted
mechanical parameters for mounting on busbar sytems with 100mm distance; busbar mounting by Schraubbefestigung with bolt M10; cable connection below with bolt M10; changeover to terminal
