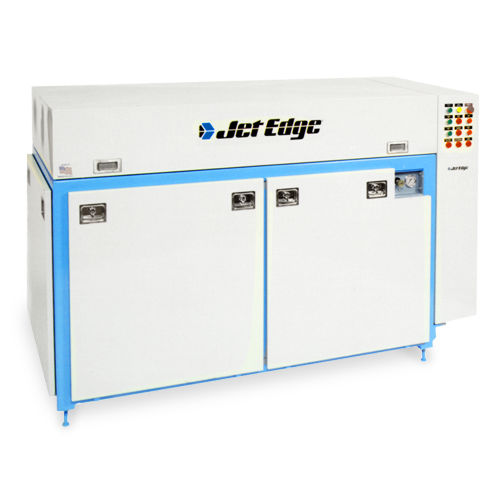

The IP60-75 is our straight-to-the-point waterjet. You’ll be able to cut your application’s material and time spent on the job. It is perfect for moderately intense cutting projects. With the ability to run three 0.010″/0.030″ orifice/nozzle combinations, a 1.5 gpm flow rate, and a dynamic pressure of 55,000 psi, this pump will not let your application down.
CONSTRUCTION
• Heavy-gauge sheet metal covers
• Rugged all-steel welded framework
• Hinged cover & quick-remove access covers
CONTROLS
• UL Certified electrical panel
• Safety shutdown systems
• Automatic safety pressure bleed-down valve
• Optional advanced control package
INTENSIFIER PUMP
• Single, 1 quart (0.9 liters) attenuator
• Single piston, dual plunger intensifier with tie rod design
• Max rated orifice size .018 in (.46 mm)
ELECTRIC MOTOR
• TEFC NEMA premium efficiency motor
• Full load amps @ 460vac: (60Hz) 89
• Full load amps @ 230vac: (60Hz) 178
