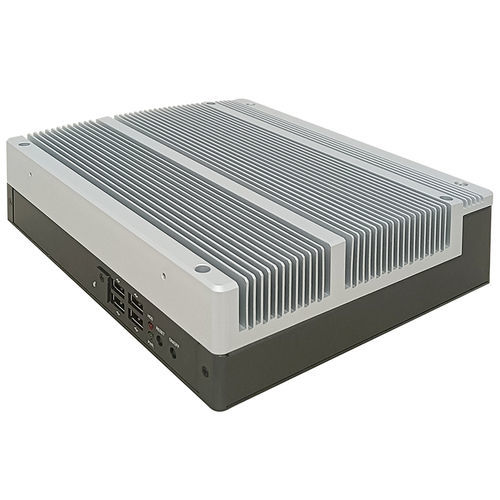

Expansion PC HB650I25-H610-B

wall-mounteddesktopDIN rail

Overview

The HB650I25 is a Mini-ITX industrial motherboard by Jetway based on the Intel H610 chipset. It supports LGA1700 12th/13th/14th Gen Intel desktop processors (up to 65W), up to 64GB DDR4 memory and is designed for compact industrial systems with DC 12–19V input and extended operating temperature range. The board provides multiple I/O, dual Gigabit Ethernet, M.2 expansion and dual-display output (DisplayPort + HDMI) for space-constrained performance applications.

Key features

• Supports Intel 12th/13th/14th Gen LGA1700 desktop processors (TDP up to 65W)
• Intel H610 chipset, Mini-ITX form factor
• Memory: 2 x DDR4 SO-DIMM 3200MT/s, dual channel, up to 64GB
• Storage/expansion: 1 x M.2 M-Key (2242/2280, PCIe x4) for NVMe; 1 x M.2 E-Key (2230) for CNVi/PCIe x1/USB2.0
• I/O: 6 USB ports (2 x USB3.2 Gen1, 4 x USB2.0), serial ports (2 x RS-232/422/485, 2 x RS-232), audio (MIC-in, Line-out)
• Display: 1 x DP1.4 (up to 7680 x 4320@60Hz) and 1 x HDMI (up to 4096 x 2160@60Hz), dual-display support
• Networking: 2 x Realtek RTL8111H Gigabit Ethernet

Technical specifications

• MB form factor: Mini-ITX (224.0 x 199.0 x 63.0 mm)
• CPU socket: LGA1700, supports Intel 12th/13th/14th Gen processors (Alder Lake-S), up to 65W
• Chipset: Intel H610
• Memory: 2 x DDR4 SO-DIMM (3200MT/s), dual channel, up to 64GB
• BIOS: AMI 128Mb Flash ROM
• Wake on LAN: Yes
• Watchdog timer: 255 levels
• RTC battery: Lithium battery
• OS support: Windows 10 (64-bit), Windows 11 (64-bit), Linux
• Power: DC-in 12–19V; power modes AT / ATX
• GPU: Intel UHD Graphics
• Display outputs: DP1.4 (max 7680 x 4320@60Hz), HDMI (max 4096 x 2160@60Hz); supports 2 displays
• Audio: Realtek ALC897 codec; amplifier 3W
• Ethernet: 2 x RJ45 (Realtek RTL8111H GbE)
• Rear I/O: 2 x RS-232/422/485, 2 x RS-232, 1 x MIC-in, 1 x Line-out, Phoenix terminal for DC 12–19V input, 2 x WiFi antenna holes, 2 x USB3.2 Gen1
• Front I/O: 1 x FAN link, 4 x USB2.0, Power LED, HDD LED, Reset, Power button
• M.2: 1 x M-Key 2242/2280 (PCIe x4) for NVMe; 1 x E-Key 2230 (CNVi/PCIe x1/USB2.0) for WiFi/BT
• Mechanical: 224.0 x 199.0 x 63.0 mm
• Shock: 15G, 11ms
• Vibration: 1 Grms / 5–500Hz (operation)
• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 10–95% @40°C non-condensing
• Certification: CE / FCC Class A
• ESG: ErP, EU RoHS

Applications

• Industrial automation and control systems
• Edge computing, IoT gateways and compact servers
• HMI panels, digital signage and kiosk systems
• Embedded systems requiring wide temperature and DC input

Packing list

• HB650I25-H610 main unit
• Power cord and Adapter 19V/6.32A (120W FSP120-ABBN5)
• Wall mount kit (HCS650MWM01B-F), screw packs, DIN rail clip
• Optional: DC1225 fan expansion module
