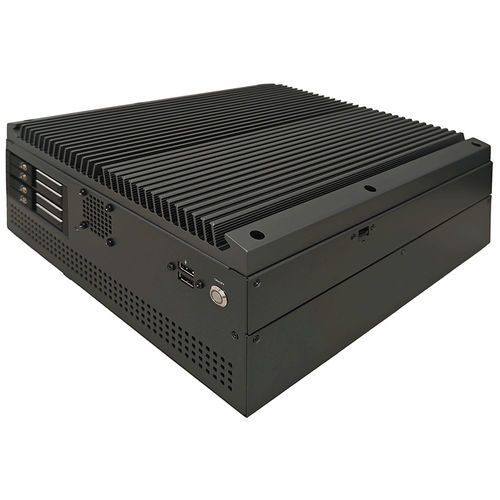

Barebone PC B912I225 series

wall-mountedIntel® Core i3Intel® Core i5

Overview
Jetway B912I225 is a compact fanless industrial performance system based on the Intel® Q670E chipset. It supports LGA1700 Alder Lake-S desktop processors up to 35W and is engineered for industrial deployments requiring multiple expansion options, M.2 slots, 2.5-inch hot-plug HDD trays and wide-range AC input (110–240V).

Key features

• Supports Intel® LGA1700 Core i3/i5/i7 and Pentium processors (max 35W)
• 2 x DDR5 SO-DIMM (up to DDR5-5600 with suitable CPU), up to 64–96GB depending on configuration
• Integrated networking: 1 x Intel® I219-LM GbE and 1 x Intel® I226-V 2.5GbE
• Multiple M.2 slots: M-Key (2242/2280 NVMe), B-Key (3042) for 4G/5G, E-Key for CNVi
• 1 x PCIe x16 (Gen4) expansion slot
• 4 x 2.5-inch hot-plug HDD trays for flexible storage
• Wide-range AC input 110–240V and Flex-ATX 500W power support
• Multiple display outputs (DP, HDMI, VGA) and support up to 4 displays

Technical specifications

• Motherboard form factor: Performance
• CPU: Intel® LGA1700 12th/13th/14th Gen compatible (Alder Lake-S, TDP up to 35W)
• Chipset: Intel® Q670E
• Memory: 2 x DDR5 SO-DIMM — up to 96GB @4800MT/s or up to 64GB @5600MT/s with Intel® 13th/14th Gen CPU
• BIOS: AMI 256Mb Flash ROM
• Security: Intel® PTT (integrated fTPM) & TPM 2.0 (dTPM)
• RTC battery: Lithium battery
• OS support: Windows® 10/11 (64-bit), Linux
• Power requirement: Flex-ATX 500W; Power on mode: AT/ATX (default)
• Display outputs: 1 x DisplayPort 1.4a (up to 8K@60Hz), 1 x HDMI® 2.0b (up to 4K@60Hz), 1 x VGA (up to 1920x1080@60Hz)
• Multiple display: Up to 4 displays supported
• Ethernet: 1 x RJ45 (Intel® I219-LM GbE), 1 x RJ45 (Intel® I226-V 2.5GbE)
• Rear I/O: 6 x USB 3.2 Gen2, 1 x HDMI®, 1 x DP, 1 x VGA, 2 x RJ45, 1 x RS-232/422/485, 5 x RS-232, 1 x AC-in, 4 x antenna holes, 1 x audio
• Front I/O: 2 x USB 2.0, Power button, Power LED
• Storage: 4 x 2.5-inch HDD trays (hot-plug)
• RAID: Intel® VMD RAID 0,1 & SATA RAID 0,1,5,10
• Expansion - M.2: B-Key 3042 (PCIe x1/USB3.2) for 4G/5G; E-Key 2230 (USB2.0/PCIe x1) for CNVi; M-Key 2280 (PCIe Gen3 x4) NVMe; M-Key 2242 (PCIe Gen4 x4 / SATA) NVMe
• Expansion - PCIe: 1 x PCIe x16 (Gen4), supports expansion cards up to 135 x 285 mm
• Mechanical / Mounting: Wall mount
• Dimensions (W x D x H): 284.0 x 300.0 x 133.7 mm
• Operating temperature: -10°C to 60°C
• Storage temperature: -20°C to 70°C
• Operating humidity: 10–95% @40°C non-condensing
• Certifications: CE / FCC Class A, LVD
• Environmental: EU RoHS, China RoHS, ErP

Typical applications

• Industrial automation and control cabinets
• Edge computing and IoT gateways
• Network appliances and communications equipment
• Digital signage and multimedia kiosks
• Video surveillance and edge recording

Ordering & support

• Configurable options: CPU, memory, storage, RAID, optional 4G/5G modules
• Contact Jetway or an authorized distributor for quotations and custom configurations
• OEM/volume support and BIOS customization available on request
