Expansion PC B903DMTX
boxdesktopIntel® Processor N97

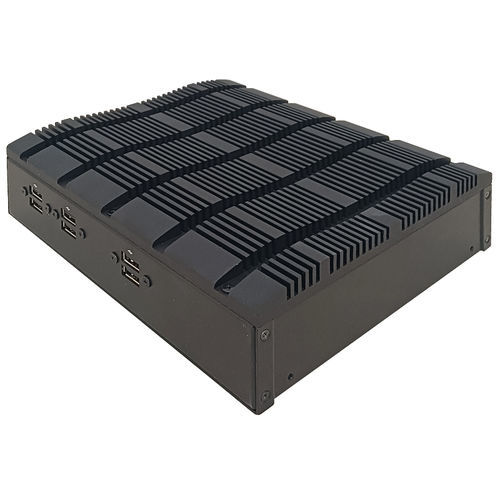

Expansion PC - B903DMTX - Jetway Information Co., Ltd. - box / desktop / Intel® Processor N97
Expansion PC - B903DMTX - Jetway Information Co., Ltd. - box / desktop / Intel® Processor N97
Expansion PC - B903DMTX - Jetway Information Co., Ltd. - box / desktop / Intel® Processor N97 - image - 2
Expansion PC - B903DMTX - Jetway Information Co., Ltd. - box / desktop / Intel® Processor N97 - image - 3
Expansion PC - B903DMTX - Jetway Information Co., Ltd. - box / desktop / Intel® Processor N97 - image - 4
Add to favorites
Compare this product
Go to the Jetway Information Co., Ltd. website for more information

Characteristics

Type
box, expansion
Configuration
desktop
Processor
Intel® Alder Lake-N, Intel® Processor N97
Ports
DDR5 SO-DIMM, HDMI, DisplayPort, USB 2.0, RS-232, RS-485, WiFi, RJ45, USB 3.2, SATA III, M.2 Key M, M.2 Key E
Operating system
Linux, Windows 10, Windows 11
Size
compact
Domain
industrial
Other characteristics
fanless
Memory
32 GB

Description

Overview

  • Fanless performance system built around an onboard Intel® Processor N97 (Alder Lake‑N) for low‑power industrial applications
  • Supports DDR5 4800MT/s, single-channel up to 32GB (1 x DDR5 SO‑DIMM)
  • Wide DC input 12–19V and compact fanless chassis (200.0 x 180.4 x 59.5 mm)


Key features

  • Onboard Intel® Processor N97 (Intel® Processor N‑series, formerly Alder Lake‑N)
  • 2 x Realtek® RTL8111H GbE LAN
  • Storage: 1 x SATA III (6Gb/s), 1 x M.2 M‑Key (2242/2280, PCIe x2 Gen3)
  • Expansion: 1 x M.2 E‑Key (PCIe x1 / USB 2.0, CNVi interface)
  • USB & serial ports: 2 x USB 3.2 Gen 1, 6 x USB 2.0; 2 x RS‑232/485, 2 x RS‑232


Technical specifications

  • BIOS: AMI 256Mb Flash ROM; Wake on LAN supported; Watchdog Timer: 255 levels
  • Security: Intel® PTT (integrated fTPM); RTC battery: lithium
  • OS support: Windows® 10 (64-bit), Windows® 11 (64-bit), Linux
  • Power: DC‑in 12–19V; Power-on mode: AT / ATX (default)
  • Graphics & display: Intel® HD Graphics; 1 x DP 1.2 and 1 x HDMI® 2.0b, up to 4096 x 2160@60Hz each; supports 2 displays
  • Audio codec: Realtek ALC897
  • Operating temperature: -10°C to 60°C; Storage temperature: -20°C to 70°C
  • Certifications: CE / FCC Class A; ESG declaration: EU RoHS, ErP, China RoHS, REACH (option)


I/O and expansion details

  • Rear panel I/O: 2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI® 2.0b, 1 x DP 1.2, 2 x RS‑232/485, 2 x RS‑232, 2 x RJ45, 1 x audio (Line out/MIC Combo), 1 x DC jack, 1 x grounding screw
  • Front panel I/O: 1 x Power Button, 2 x WiFi antenna holes, 6 x USB 2.0
  • M.2 expansion: 1 x M‑Key 2242/2280 (PCIe Gen3 x2); optional 1 x M‑Key 2242 (SATA) on request; 1 x E‑Key 2230 (USB2 / PCIe Gen3 x1) supporting CNVi


Included and optional accessories

  • Examples: HBJC903MTX‑9700‑N (main unit), power cord, 12V/5A 60W adapter, 2 x antennas (GX572450001SM)
