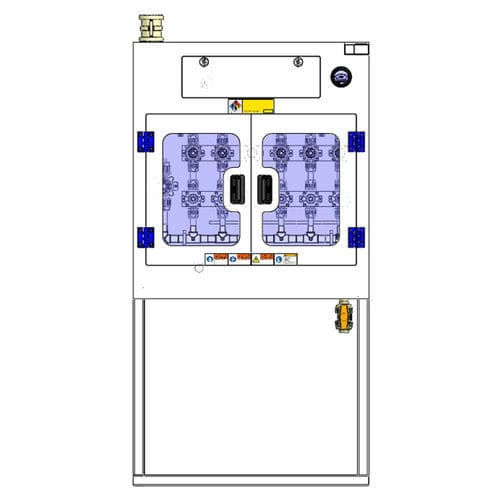

Floor-mounted cabinet JW series

for gas

Technical Data
Model: JW-200-VMB-C, JW-100-VMB-C
Physical dimension: 4S: W650*D275*H1750 , 6S: W850*D275 *H1750, 8S: W1050 *D275*H1750. Can be specially customized according to user requirements
Control cabinet power supply: 24V, VMB electronic control part can be connected with the factory central control system
Compressed air: CDA, 1/4" quick coupling
Waste outlet: Drain, PP DN20 Fusion Socket
Cabinet ventilation: OD 50MM, 85m³/hr
Standard equipment: PP shell + transparent PVC observation window + PFA internal pipe valve components, leakage alarm

Optional

• UPW
• EMO
• Operating instructions
• Exhaust Pressure Monitor
• Door Sensor

Caractéristiques / spécifications techniques

• Models supported: JW-200-VMB-C and JW-100-VMB-C
• Physical dimensions: 4S (W650×D275×H1750), 6S (W850×D275×H1750), 8S (W1050×D275×H1750); customizable per user requirements
• Control cabinet power supply: 24V; VMB electronics can integrate with factory central control systems
• Compressed air interface: CDA with 1/4" quick coupling
• Waste outlet: Drain via PP DN20 Fusion Socket
• Cabinet ventilation capacity: OD 50mm, 85 m³/hr
• Standard equipment includes: PP cabinet shell, transparent PVC observation window, PFA internal piping and valve components, and leakage alarm
• Optional accessories/features: UPW, EMO, operating instructions, exhaust pressure monitor, door sensor
