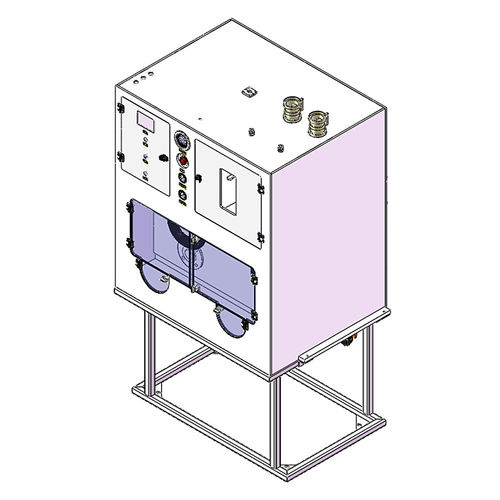

Multi-channel manifold JW-300-CCB

PPfor gascabinet

Overview
This valve manifold and control cabinet JW-300-CCB by Clean Connection is designed for sampling, distribution and control in ultra-pure water (UPW) and clean gas (CDA, N2) systems. The unit combines a PP outer shell with PFA internal piping and valve components for chemical compatibility in controlled environments.

Technical data

• Model: JW-300-CCB
• Physical dimensions: 2S: W856 × D790 × H1865 mm; 4S: W1050 × D790 × H1865 mm (customizable)
• Control cabinet power supply: 220 VAC, 50 Hz, 25 W with leakage protection
• Purge medium: PN2, SS316 fittings 1/2" SWG
• Ultra-pure water connection: UPW, JIS 16A bonding
• Compressed air: CDA, SS316 fittings 1/2" SWG
• Waste outlet: Drain, PP DN20 fusion socket
• Cabinet ventilation: OD 100 mm, 150 m³/hr

Standard construction and features

• PP outer shell with transparent PVC observation window
• PFA internal piping and valve components compatible with UPW
• Nitrogen purge/blowing for line protection
• Pipeline pressure maintaining function before sampling and filling
• Leakage alarm and negative pressure alarm

Optional features

• Barcode reader
• Color touch screen
• Filters for CDA & N2
• Pure water sampling port

Applications & customization

• Ready for integration in UPW distribution and sampling lines in semiconductor, pharmaceutical and laboratory environments
• Customizable dimensions and fittings to match site specifications
• Contact Clean Connection for configuration, installation and validation support
