Automatic gas control system JW-300-GC

customfor aluminum productionfor ladle purging

Overview
The JW-300-GC is a fully automated gas cabinet engineered for precise delivery of ultra-high-purity (UHP) and high-purity specialty gases. Available in single-cylinder or double-cylinder configurations, it combines automated switching, controlled purging and integrated safety systems to support semiconductor, microelectronics, laboratory and industrial gas distribution requirements.

Technical data

• Model: JW-300-GC
• Configuration: single bottle or double bottle
• Dimensions (double bottle): W800 × D633 × H2172 mm
• Dimensions (single bottle): W600 × D661 × H2104 mm
• Control power: 220 VAC, 50 Hz, 500 W
• Heating power: 220 VAC, 50 Hz, 1–6 kW (configurable)
• Purge connection: PN2, 1/4" MVCJ
• High-pressure holding: HPN2, 1/4" MVCJ
• Vacuum connection: GN2, 1/4" MVCJ
• Vent/drain: 1/2" MVCJ
• Pneumatic supply: CDA driver, 1/4" SWG
• Cabinet ventilation: OD 150 mm; silane 810 m³/hr; other gases 204 m³/hr
• User interface: 10 inch color touchscreen

Standard features

• Automatic cylinder switching and automatic purging
• Explosion-proof cabinet with self-locking door and explosion-proof observation window
• Leakage alarm and remote emergency shutoff
• Negative pressure alarm

Optional modules

• UV/IR flame detector
• Cylinder Shutboy
• Panel heating
• Ethernet communication module
• CGA Guarder
• Excess flow switch
• Pneumatic cylinder control
• Weight scale
• Cylinder heating

Applications

• Semiconductor and microelectronics gas distribution
• Research laboratories and R&D facilities
• Coating, surface treatment and specialty manufacturing lines
• Processes requiring controlled delivery of UHP/high-purity gases

Images included on page

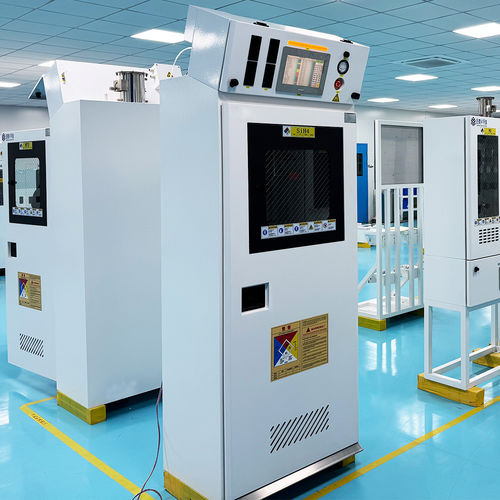

• Main product images and internal cabinet photos showing configuration, panels and controls
