Shaft stepper 14HS20 series

shaftsshaftfor shaft

Product overview

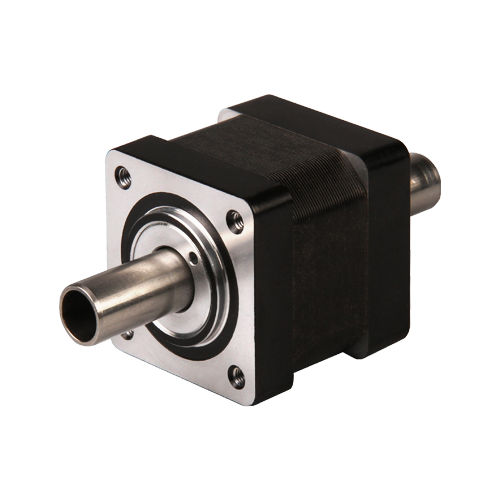

The Size 14 (35 mm) hollow shaft stepper motor, available as models 14HS2033 and 14HS2045, delivers up to 0.36 N·m holding torque and is designed for compact industrial motion systems where a hollow shaft enables direct shaft-pass-through or encoder integration.

Motor characteristics
Model No.; Rated Voltage (V); Current (A [RMS]); Resistance (Ω); Inductance (mH); Holding Torque (N·m); Detent Torque (N·m); Motor length (mm)
14HS2033; 3.5; 1.0; 3.5; 3.6; 0.15; 0.006; 33.6
14HS2045; 6; 1.0; 6; 7.8; 0.32; 0.01; 45.6

Dimensional drawing
Dimensional drawings and product images for Size 14 (35 mm) are provided to support mechanical integration and panel layout verification.

Torque performance curves
TEST CONDITION
Measured at 24 VDC using DS-OLS8-FRS4 bipolar chopper drive at rated current (RMS). Motor torque varies with supply voltage and drive settings; design margin of 50% is recommended for continuous industrial applications.

Options — Encoder option

• Resolution (CPR): 50, 100, 192, 200, 250, 256, 360, 400, 500, 720, 900, 1000, 1250, 2000, 2500, 4000, 5000
• Single-ended output codes: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
• Differential output codes: A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q

Technical specifications

• Series: Hollow Shaft Stepper Motor (Size 14 / 35 mm)
• Maximum holding torque: 0.36 N·m
• Model 14HS2033 — Rated voltage: 3.5 V; Current (RMS): 1.0 A; Resistance: 3.5 Ω; Inductance: 3.6 mH; Holding torque: 0.15 N·m; Detent torque: 0.006 N·m; Motor length: 33.6 mm
• Model 14HS2045 — Rated voltage: 6 V; Current (RMS): 1.0 A; Resistance: 6 Ω; Inductance: 7.8 mH; Holding torque: 0.32 N·m; Detent torque: 0.01 N·m; Motor length: 45.6 mm
• Test condition for torque curves: 24 VDC with DS-OLS8-FRS4 bipolar chopper drive at rated current (RMS)
• Options: Hollow-shaft encoder integration, custom windings and shaft modifications — contact DINGS for configuration and lead-time
