Shaft stepper 17HS2034

for shaftsfor shaftshafts

Overview

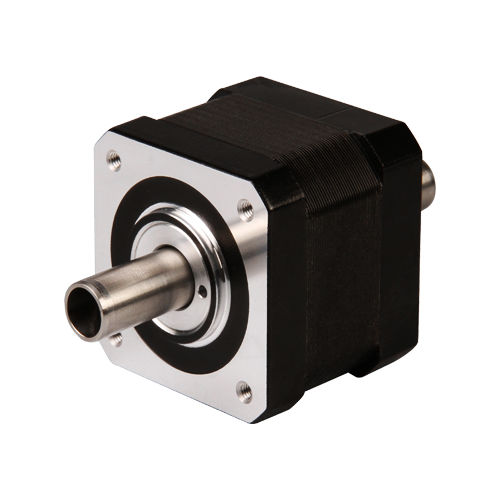

The Size 17 (42 mm) hollow shaft stepper motor series includes models 17HS2034 and 17HS2048. The series delivers holding torque up to 0.48 N·m and supports hollow-type encoder assemblies as an option for direct shaft feedback. Custom windings and shaft modifications are available on request.

Key specifications

• Series / Size: Size 17 hollow shaft (42 mm)
• Models and electrical/mechanical data:
  • 17HS2034 — Rated voltage: 3.8 V; Current (RMS): 1.0 A; Resistance: 3.6 Ω; Inductance: 4.5 mH; Holding torque: 0.25 N·m; Detent torque: 0.014 N·m; Motor length: 34.1 mm
  • 17HS2048 — Rated voltage: 2.25 V; Current (RMS): 2.5 A; Resistance: 1.0 Ω; Inductance: 1.8 mH; Holding torque: 0.48 N·m; Detent torque: 0.02 N·m; Motor length: 48.1 mm
• Test condition for torque curves: 24 VDC with DS-OLS8-FRS4 bipolar chopper drive at rated current (RMS)
• Encoder options: multiple CPR resolutions available (see list below)

Encoder options
Resolution (CPR): 50, 100, 192, 200, 250, 256, 360, 400, 500, 720, 900, 1000, 1250, 2000, 2500, 4000, 5000

Dimensional drawings
Dimensional drawings and product images for the 42 mm variant are provided for installation and mechanical integration reference on the product page.

Torque performance
TEST CONDITION: Measured at 24 VDC using DS-OLS8-FRS4 bipolar chopper drive at rated current (RMS). Motor torque varies with supply voltage and drive settings; allow a safety margin (recommendation: 50% for system design) when selecting the motor.

Options and customization
Available options include hollow-shaft encoder assemblies (single-ended or differential outputs), custom windings and shaft modifications. Contact the supplier for available resolutions, output mappings and lead times.

Documentation
Datasheets, dimensional drawings and torque/speed performance curves are provided to support technical selection and integration.
