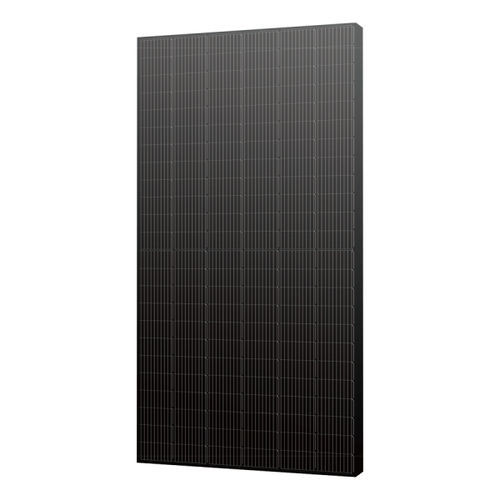

Monocrystalline silicon PV solar module S8B-144CEISOTUV
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- TUV, CE, ISO
- Other characteristics
- black, PERC
- Peak power (Wp)
530 W, 535 W, 540 W, 545 W, 550 W
- Open-circuit voltage
49,610 mV, 49,870 mV, 49,950 mV, 50,040 mV, 50,280 mV
- Short circuit current
13,660 mA, 13,720 mA, 13,780 mA, 13,840 mA, 13,900 mA
- Max power voltage
41.3 V, 41.5 V, 41.7 V, 41.9 V, 42.1 V
- Max power current
13 mA, 12,840 mA, 12,890 mA, 12,950 mA, 13,060 mA
- Module efficiency
20.5 %, 20.7 %, 20.9 %, 21.1 %, 21.3 %
- Lenght
2,279 mm
(90 in)- Width
1,134 mm
(45 in)- Height
35 mm
(1 in)- Weight
27 kg
(59.52 lb)
Description
▲ Higher output power
▲ Lower temperature coefficient
▲ Lower LCOE (Levelized Cost Of Energy)
▲ High Power output lead to lower BOS cost
▲ ISO9001:2015 Quality Management system
▲ ISO14001:2015 Environmental Management System
▲ ISO45001:2018 Occupational Health and Safety Management System
▲ Salt Mist Corrosion Protect
▲ Ammonia Resistance
▲ Excellent Potential Induced Degradation Resistance
▲ Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method
