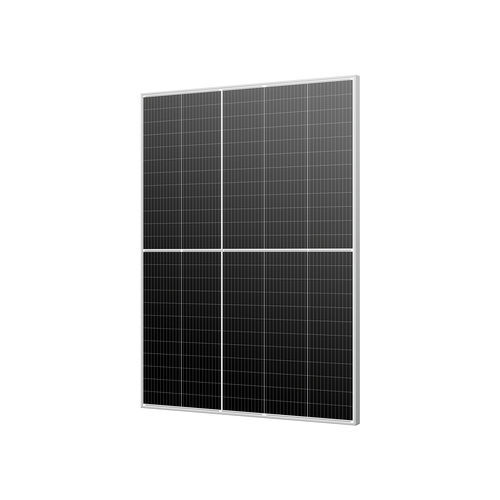

Monocrystalline silicon PV solar module R9-120PERCTUVCE
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Cell architecture
- PERC
- Certifications
- TUV, CE, ISO
- Peak power (Wp)
390 W, 395 W, 400 W, 405 W, 410 W
- Open-circuit voltage
40.7 V, 40.9 V, 41.2 V, 41.4 V, 41.6 V
- Short circuit current
12.2 A, 12.3 A, 12.4 A
- Max power voltage
33.8 V, 34.1 V, 34.3 V, 34.5 V, 34.8 V
- Max power current
11.5 A, 11.6 A, 11.7 A, 11.8 A
- Module efficiency
20.3 %, 20.8 %, 21.1 %, 21.3 %
- Lenght
1,754 mm
(69 in)- Width
1,096 mm
(43 in)- Height
30 mm
(1 in)- Weight
21 kg
(46.3 lb)
Description
• Higher output power
• Lower temperature coefficient
• Lower LCOE (Levelized Cost Of Energy)
• High Power output lead to lower BOS cost
• ISO9001:2015 Quality Management system
• IS014001:2015 Environmental Management System
• IS045001:2018 Occupational Health and Safety Management System
• Salt Mist Corrosion Protect
• Ammonia Resistance
• Excellent Potential Induced Degradation Resistance
• Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method
