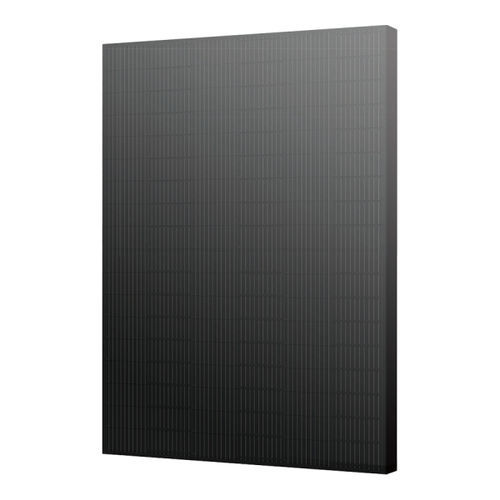

Monocrystalline silicon PV solar module S8B-108CEISOTUV
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- TUV, CE, ISO
- Other characteristics
- black, PERC
- Peak power (Wp)
390 W, 395 W, 400 W, 405 W, 410 W
- Open-circuit voltage
36.7 V, 36.9 V, 37.1 V, 37.3 V, 37.6 V
- Short circuit current
13.6 A, 13.7 A, 13.8 A, 13.9 A
- Max power voltage
30.6 V, 30.8 V, 31 V, 31.2 V, 31.4 V
- Max power current
12.8 A, 12.9 A, 13 A, 12,750 A, 12,970 A
- Module efficiency
20 %, 20.2 %, 20.5 %, 20.7 %, 21 %
- Lenght
1,722 mm
(68 in)- Width
1,134 mm
(45 in)- Height
30 mm
(1 in)- Weight
21.5 kg
(47.4 lb)
Description
▲ Higher output power
▲ Lower temperature coefficient
▲ Lower LCOE (Levelized Cost Of Energy)
▲ High Power output lead to lower BOS cost
▲ ISO9001:2015 Quality Management system
▲ ISO14001:2015 Environmental Management System
▲ ISO45001:2018 Occupational Health and Safety Management System
▲ Salt Mist Corrosion Protect
▲ Ammonia Resistance
▲ Excellent Potential Induced Degradation Resistance
▲ Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method
