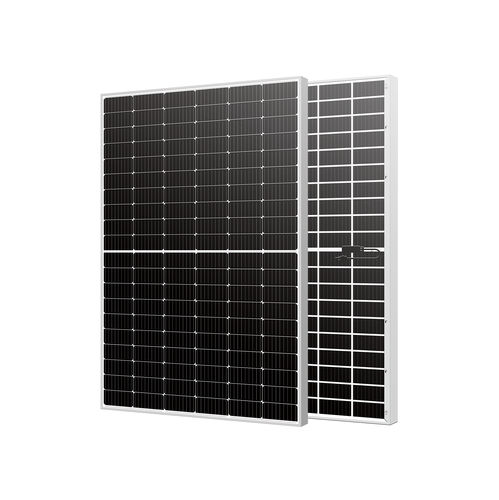

Monocrystalline silicon PV solar module S7-120GACEISOTUV
Add to favorites
Compare this product
Characteristics
- Material
- monocrystalline silicon
- Certifications
- TUV, CE, ISO
- Other characteristics
- PERC
- Peak power (Wp)
360 W, 365 W, 370 W, 375 W, 380 W
- Open-circuit voltage
40.6 V, 40.8 V, 41.1 V, 41.3 V, 41.6 V
- Short circuit current
11.5 A, 11.6 A, 11.7 A, 11.8 A, 11.9 A
- Max power voltage
31.1 V, 34 V, 34.4 V, 34.5 V, 34.8 V
- Max power current
10.6 A, 10.7 A, 10.8 A, 10.9 A
- Module efficiency
19.8 %, 20 %, 20.3 %, 20.6 %, 20.9 %
- Lenght
1,755 mm
(69 in)- Width
1,038 mm
(41 in)- Height
30 mm, 35 mm
(1 in, 1 in)- Weight
21.5 kg
(47.4 lb)
Description
•Higher output power
•Lower temperature coefficient
•Up to 30% additional power gain from back side depending on albedo
•Lower LCOE (Levelized Cost Of Energy)
•High Power output lead to lower BOS cost
•ISO9001:2015 Quality Management system
•ISO014001:2015 Environmental Management System
•IS045001:2018 Occupational Health and Safety Management System
•Salt Mist Corrosion Protect
•Ammonia Resistance
•Excellent Potential Induced Degradation Resistance
•Excellent Wind Load 2400Pa & Snow Load 5400Pa Under Certain Installation Method
