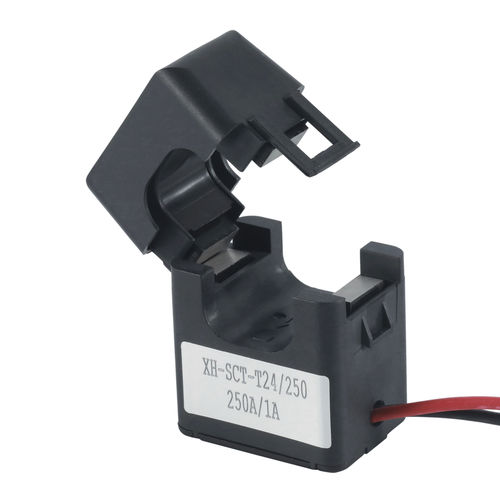

Transformer current sensor XH-SCT-T24-CTclampACsplit-core
Add to favorites
Compare this product
Characteristics
- Technology
- transformer
- Mounting
- clamp
- Electrical characteristics
- AC
- Other characteristics
- split-core
- Primary current
Max.: 300 A
Min.: 0 A
Description
UL XH-SCT-T24 Split Core Curren Transformer CTs
Specifications:
1.Diameter:24mm
2.Rated current:0-300A
3.Rated output:mA or mV(0.333V)
4.Insulation Voltage:3KV
5.Rated Frequency:50HZ/60HZ
6.Operating Temperature:-15℃to 60℃
7.Flame resistance:UL94-V0
8.Certificates:CE,UL
9.Class:1.0
Features:
1.Small cost
2.Split core design ,Easier installation
3 .Build diode ,no high voltage danger
4.Good linearity at very low current
Applications:
Power metering
Sub-metering for building, energy efficiency monitoring, consumption analysis, and cost allocation
Power quality monitoring for distribution system equipment
Condition monitoring for conveyors, pumps, etc.
Hybrid inverter for home energy storage
Distributed measurement systems
