DC motor JCD15SAE series

5 V8.4 Vtubular

Overview

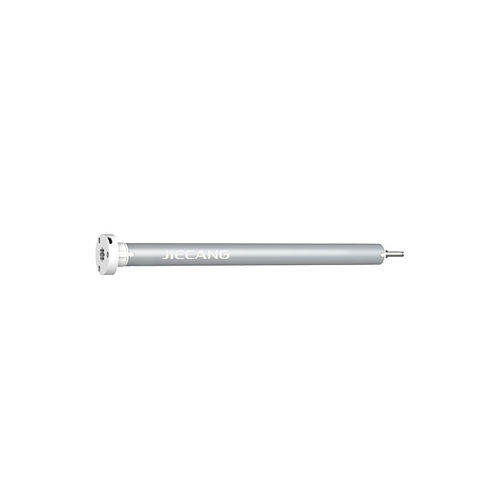

JCD15SAE — Φ16 mm DC smart tubular roller motor with a slim motor head, built-in wireless receiver and electronic limit. Designed for small windows and compact installations. External WiFi or Zigbee modules allow smartphone app and smart speaker control.

Key Features

• Compact design for small windows and tight installations
• Supports external WiFi/Zigbee modules for app and voice control (e.g. Alexa)
• External power adapter option to minimize motor length
• Built-in wireless receiver and electronic limit setting
• Patented spring-arm button on motor head for secure mounting
• Thinnest motor head to reduce light gap in installations
• Patented silent motor architecture: running noise ≤31 dB
• Three adjustable speeds (25/30/35 rpm)
• Stall protection and easy limit setup with favorite position memory

Certifications

• UL
• CE
• FCC
• ROHS

Applications

• Indoor roller blinds
• RV sunshades
• Outdoor projection screens
• Sheer and light-filtering blinds

Dimension Drawing
Dimension drawing image available on the product page (larger drawings downloadable in product documentation).

Control

• 1. W1/W2/W3/W5 series remote emitter
• 2. Mobile app control via external WiFi/Zigbee module
• 3. Smart speaker voice control (when integrated)

Accessories (optional)

• JCD-A-JH05
• JCD-A-JH04
• JCD-A-JL05
• JCD-A-JL04
• 20 mm round tube — Rated load: 3 kg
• 28 mm slotted tube — Rated load: 2.1 kg

Product Features (detailed)

• Silent technology — Noise reduction and shock absorption structure ensures quiet, smooth operation; motor noise ≤31 dB.
• Intelligent control — External WiFi or Zigbee modules enable app and voice control and integration with home automation systems.
• Flush management — Precise percentage control for alignment between multiple roller blinds during travel.

Product Parameter

• JCD15SAE-0330 — Rated torque: 0.3 N·m; Output speed: 25/30/35 rpm; Rated voltage: 8.4 V; Rated current: 0.6 A; Rated power: 5 W; Frequency: 433 + external WiFi/Zigbee; Power supply: Adapter 8.4V/1A; Weight: 0.11 kg; Length: 240 mm; IP20
• JCD15SLEU-0330 — Rated torque: 0.3 N·m; Output speed: 25/30/35 rpm; Rated voltage: 5 V; Rated current: 0.6 A; Rated power: 5 W; Frequency: 433 MHz; Power supply: USB charger 5V/2A; Weight: 0.17 kg; Length: 350 mm; IP20
• JCD15SLE-0330 — Rated torque: 0.3 N·m; Output speed: 25/30/35 rpm; Rated voltage: 8.4 V; Rated current: 0.6 A; Rated power: 5 W; Frequency: 433 MHz; Power supply: Adapter 8.4V/1A & solar panel option; Weight: 0.17 kg; Length: 350 mm; IP20

Related Products (examples)
JCD25SAE-0730, JCD25SAEW-0730, JCD25SAEZ-0730, JCD25SAE-1130, JCD25SAEW-1130, JCD25SAEZ-1130, JCD25SAE-1525, JCD25SAEW-1525, JCD25SAEZ-1525, JCD28QAE-2020, JCD30QAE-2020.

Data Download
User manual and technical documentation available for download (PDF) on the product page.

Characteristics / Technical specifications

• Model series: JCD15SAE (examples: JCD15SAE-0330, JCD15SLEU-0330, JCD15SLE-0330)
• Tubular diameter: Φ16 mm
• Rated torque: 0.3 N·m
• Output speeds: 25/30/35 rpm
• Rated voltage options: 8.4 V / 5 V (USB)
• Rated current: 0.6 A
• Rated power: 5 W
• Frequency: 433 MHz; variants support external WiFi/Zigbee
• Power supply: Adapter (e.g. 8.4V/1A) or USB charger; some variants support solar panel
• Weight: 0.11–0.17 kg depending on variant
• Length examples: 240 mm / 350 mm depending on variant
• IP rating: IP20
• Noise level: ≤31 dB
• Adjustable: 3 speeds, stall protection, electronic limit setting, favorite position memory
• Control options: remote emitter, mobile app, smart speaker voice
