DC motor JCD15SLEU series

5 Vsmall-sizetubular

Product overview

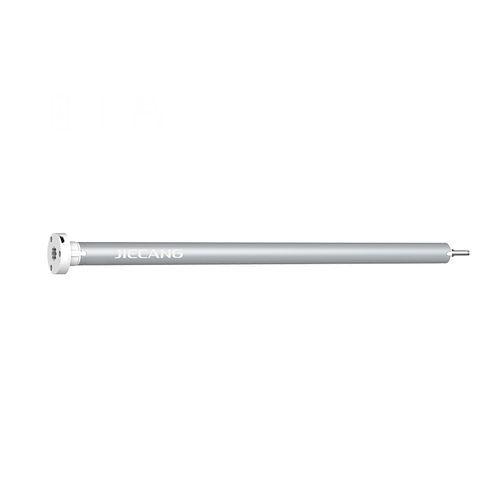

JCD15SLEU - Φ16mm DC tubular motor, battery powered. Designed for small windows and applications requiring a compact tube diameter and battery operation. Built-in rechargeable lithium battery with Micro USB charging, integrated wireless receiver and electronic limits. Patented spring-arm button on the motor head and the thinnest motor head design to minimize light gap.

Applications

• Indoor roller blinds
• RV sunshade
• Sheer blinds
• Projection screens

Features

• Designed for small windows
• Built-in rechargeable lithium battery, no power wiring required
• Low standby consumption; 4–6 months operation when fully charged
• Micro USB charging port
• Built-in wireless receiver and electronic limit
• Patented spring-arm button on motor head
• Thinnest motor head to minimize light gap
• Patented silent motor design; running noise ≤31 dB
• 3 adjustable speeds (25/30/35 rpm)
• Stall protection
• Easy setup of upper/lower limits and favorite position

Product features
Noise reduction and shock-absorption structure ensures quiet, smooth operation; running noise ≤31 dB.

Control
Compatible with W1/W2/W3/W5 series emitters (wireless control options).

Power supply
Built-in rechargeable lithium battery with Micro USB charging; optional adapter or solar panel available.

Accessories (optional)

• JCD-A-JH05
• JCD-A-JH04
• JCD-A-JL05
• JCD-A-JL04
• 20 mm round tube — Rated load: 3 kg
• 28 mm slotted tube — Rated load: 2.1 kg

Dimension drawing
Dimension drawings and enlarged views are available for reference.

Product parameter (selected rows)
Tubular Motor Model | Rated torque (N·m) | Output speed (rpm) | Rated voltage (V) | Rated current (A) | Rated power (W) | Frequency (MHz) | Power supply (V/A) | Weight (kg) | Length (mm) | IP degree
JCD15SLEU-0330 | 0.3 | 25/30/35 | 5 | 0.6 | 5 | 433 | USB Charger 5V/2A | 0.17 | 350 | IP20
JCD15SLE-0330 | 0.3 | 25/30/35 | 8.4 | 0.6 | 5 | 433 | Adapter 8.4V/1A & Solar Panel | 0.17 | 350 | IP20
JCD15SAE-0330 | 0.3 | 25/30/35 | 8.4 | 0.6 | 5 | 433 + External WiFi/Zigbee | Adapter 8.4V/1A | 0.11 | 240 | IP20

Technical specifications

• Model: JCD15SLEU-0330
• Tube diameter: Φ16 mm
• Rated torque: 0.3 N·m
• Output speed: 25 / 30 / 35 rpm (adjustable)
• Rated voltage: 5 V
• Rated current: 0.6 A
• Rated power: 5 W
• Frequency: 433 MHz (wireless)
• Power supply: USB Charger 5V/2A (built-in rechargeable battery)
• Weight: 0.17 kg
• Length: 350 mm
• Protection class: IP20
• Running noise: ≤31 dB (silent technology)
• Charging: Micro USB port
• Special functions: Electronic limit, stall protection, 3-speed adjustment, favorite position memory
