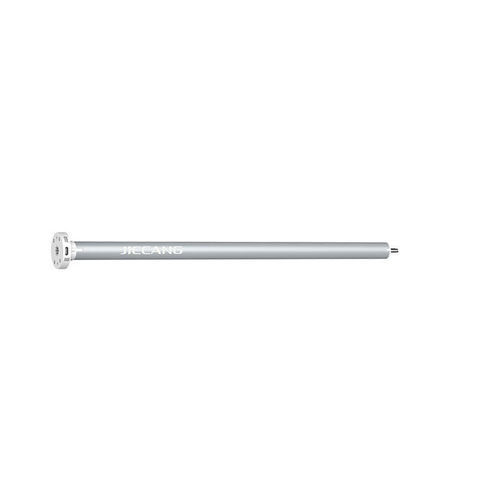

DC motor JCD20SLEU

direct current5 Vtubular

Product overview
The JCD20SLEU is a 20mm DC tubular motor designed for small windows and battery-powered applications. It features a built-in rechargeable lithium battery, wireless control, electronic limits and a very thin motor head to minimize light gaps.

Features

• Designed for small windows
• Built-in rechargeable lithium battery, no power wiring required
• Low standby power consumption, can operate 4–6 months when fully charged
• Type-C and Micro USB port charging
• Built-in wireless receiver and electronic limit
• Patented spring arm button design on motor head
• Thinnest motor head design to minimize light transmission gap
• Patented silent motor design, running noise ≤ 30 dB
• 3 adjustable speeds
• Stall protection
• Easily set up/down limits and a favorite position

Certifications

• UL
• CE
• FCC
• ROHS

Applications

• Indoor roller blinds
• RV sunshade
• Sheer blinds
• Projection screen

Dimension drawing
Dimension drawing image(s) provided for installation reference.

Control
Controlled by compatible emitters (W1/W2/W3/W5 series). Remote control range up to 30 meters.

Accessories (optional)

• 28 groove tube
• 28 round tube
• 38 groove tube
• JL07
• JH27

Product Parameter (table)
Tubular Motor Model | Rated torque(N.m) | Output speed(rpm) | Rated voltage(V) | Rated current(A) | Rated power(W) | Frequency(MHz) | Power supply(V/A) | Weight(kg) | Length(mm) | IP degree
JCD20SLEU | 0.5 | 20/25/30 | 5 | 0.8 | 5 | 433 | USB Charger 5V/2A | 0.33 | 436 | IP20/45

Related models (excerpt)
JCD15SLEU-0330 | 0.3 | 25/30/35 | 5 | 0.6 | 5 | 433 | USB Charger 5V/2A | 0.17 | 350 | IP20
JCD25SLEU-0730 | 0.7 | 25/30/35 | 5 | 0.8 | 9.6 | 433 | USB Charger 5V/2A | 0.61 | 564 | IP20
JCD25SLEU-1130 | 1.1 | 25/30/35 | 5 | 1 | 12 | 433 | USB Charger 5V/2A | 0.62 | 564 | IP20

Technical specifications

• Model: JCD20SLEU
• Pipe diameter: 20 mm
• Rated torque: 0.5 N·m
• Output speed: 20 / 25 / 30 rpm
• Rated voltage: 5 V
• Rated current: 0.8 A
• Rated power: 5 W
• Wireless frequency: 433 MHz
• Power supply / Charging: USB Charger 5V/2A; Type-C and Micro USB ports
• Battery: Built-in rechargeable lithium battery (no wiring required)
• Standby operation: Approximately 4–6 months when fully charged (low standby consumption)
• Noise: ≤ 30 dB (silent technology)
• Functions: Electronic limits, stall protection, 3-speed adjustable, favorite position memory
• Control: Compatible with W1/W2/W3/W5 series emitters; remote range up to 30 m
• Weight: 0.33 kg
• Length: 436 mm
• IP rating: IP20 / IP45 (depending on configuration)
• Special design: Patented spring arm button on motor head; thinnest motor head to minimize light gaps
