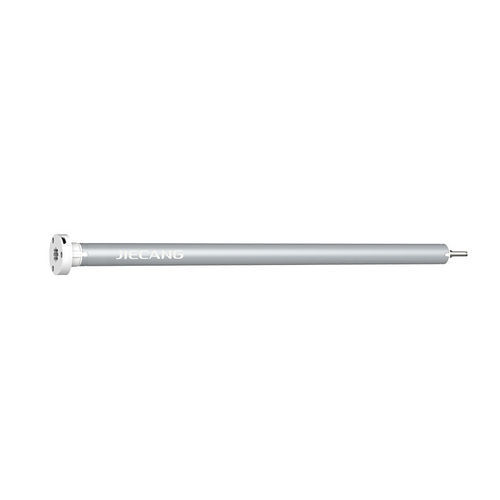

DC motor JCD15SLE series

direct current5 V8.4 V

Product
JCD15SLE — Φ16 mm DC tubular motor designed for compact roller blinds and light shading applications; built‑in rechargeable battery and micro USB charging (variant dependent).

Certifications

• UL
• CE
• FCC
• RoHS

Applications

• Indoor roller blinds
• RV sunshade
• Outdoor projection screens
• Sheer/voile blinds

Features

• Φ16 mm motor diameter for small‑profile installations
• Built‑in rechargeable lithium battery — no permanent mains wiring required (variant dependent)
• Low standby consumption; typical operation 4–6 months on a full charge (usage dependent)
• Micro USB charging port (U variant supports 5V/2A USB charger)
• Integrated wireless receiver with electronic limits
• Patented spring‑arm button on motor head for easy mounting
• Slim motor head to minimize light gap
• Patented low‑noise design, running noise ≤31 dB
• Three adjustable speeds and stall protection
• Easy setting of upper/lower limits and one favorite position

Control

• Compatible with W1 / W2 / W3 / W5 series emitters

Power supply

• Supports adapter 8.4V/1A
• Supports USB charger 5V/2A (U variant)
• Optional solar panel for off‑grid applications

Accessories (optional)

• JCD-A-JH05
• JCD-A-JH04
• JCD-A-JL05
• JCD-A-JL04
• 20 mm round tube — rated load: 3 kg
• 28 mm slotted tube — rated load: 2.1 kg

Product parameters (table)
Model | Rated torque (N·m) | Output speed (rpm) | Rated voltage (V) | Rated current (A) | Rated power (W) | Frequency (MHz) | Power supply (V/A) | Weight (kg) | Length (mm) | IP degree
JCD15SLE-0330 | 0.3 | 25 / 30 / 35 | 8.4 | 0.6 | 5 | 433 | Adapter 8.4V/1A & Solar Panel | 0.17 | 350 | IP20
JCD15SLEU-0330 | 0.3 | 25 / 30 / 35 | 5 | 0.6 | 5 | 433 | USB Charger 5V/2A | 0.17 | 350 | IP20
JCD15SAE-0330 | 0.3 | 25 / 30 / 35 | 8.4 | 0.6 | 5 | 433 + External WiFi/Zigbee | Adapter 8.4V/1A | 0.11 | 240 | IP20

Technical specifications

• Model family: JCD15SLE
• Motor diameter: Φ16 mm
• Noise: ≤31 dB (patented silent technology)
• Battery: Built‑in rechargeable lithium battery; micro USB charging (variant dependent)
• Battery runtime: Typically 4–6 months on a full charge (depending on usage)
• Speeds: 3 adjustable speeds
• Protection: Stall protection and electronic limit; IP20 enclosure
• Weight: 0.11–0.17 kg depending on variant
• Length: 240 mm or 350 mm depending on variant
• Frequency: 433 MHz (some variants support external WiFi/Zigbee)
• Power options: Adapter 8.4V/1A, USB Charger 5V/2A (U variant), optional solar panel
• Accessories: Compatible tubes and W‑series emitters as listed above
