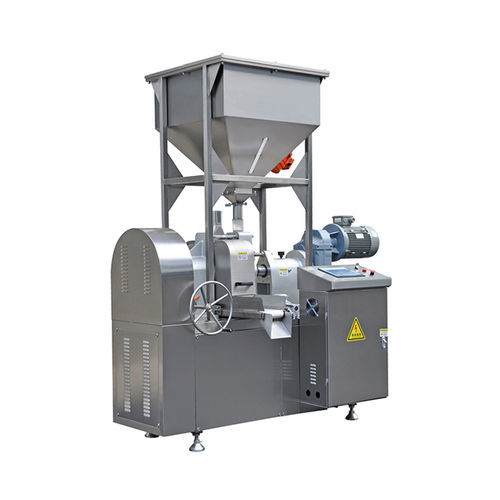

Grain product food extruder TSIII

Product overview
The TSIII Kurkure extruder uses American technology with a gravity-feed hopper equipped with a vibrator for metered raw-material flow. Feed-screw speed is regulated by an inverter and displayed on the PLC. The head gap is adjusted manually via a mechanical ratchet with a dial indicator for precision. The table slides back using a hand crank for easy access to the feed screw and internal components.

Applications
Kurkure; Cheetos; Niknak snack production.

Key technical data
Model | Host power | Output | Application Products
TSIII | 22 kW | 200–250 kg/h | Kurkure; Cheetos; Niknak

Range features

• Frame: strong carbon steel. Top feeding silo, machine body covers and control box: stainless steel.
• Mechanical handwheel for easy head-gap adjustment; dial indicator for high-precision control.
• Bidirectional belt conveyor for product output and waste discharge. Conveyor double covers are pneumatic; provision for moisture-exhausting pipe and exhausting fan.
• PLC control panel for simplified operation and process monitoring.
• Feeding screw speed adjustable by inverter, with speed displayed on the PLC for accurate rotation control.

Electric / control parts
Main motor: SIEMENS (China). Electronic parts: Schneider. Inverter: BOSCH Rexroth. PLC touch screen: SIEMENS. Main shaft brand: TIMKEEN.

Notes
The TSIII is the manufacturer's latest model in this range and provides stable production capacity; multiple units can be operated in parallel to increase throughput.

Characteristics / technical specifications

• Model: TSIII
• Host power: 22 kW
• Output: 200–250 kg/h
• Intended products: Kurkure, Cheetos, Niknak (snack pellets)
• Frame material: strong carbon steel
• Silo, machine covers and control box: stainless steel
• Head gap adjustment: mechanical handwheel with dial indicator
• Table access: table slides back via hand crank for maintenance and adjustment
• Conveyor: bidirectional belt conveyor; pneumatic double covers; provision for moisture-exhausting pipe
• Control: PLC control panel; inverter for feeding screw speed control
• Main motor brand: SIEMENS (China)
• Electronic components brand: Schneider
• Inverter brand: BOSCH Rexroth
• PLC touch screen brand: SIEMENS
• Main shaft brand: TIMKEEN
