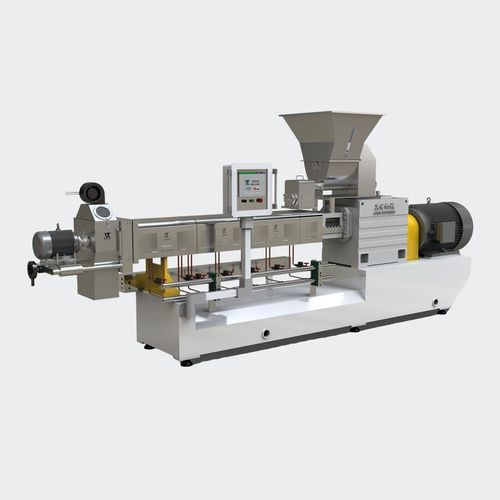

Wavy chip food extruder FT series

pet foodfor grain productstwin screw

Overview
Jinan Arrow FT series food extruder is a multifunctional twin-screw extrusion line for continuous production of puffed cereal products, snack pellets, breakfast cereals, dry pet food and other extruded food items. The machine integrates feeding, extrusion, cutting, heating, lubrication and control modules to support varied recipes and shapes.

Available options and common models
Available screw diameter options: 20D, 28D, 32D. Commonly used models by production volume: FT63, FT75, FT95.

Models and capacity
Model | Host power | Output
FT63 | 30/55 kW | 100-200 kg/h
FT75 | 75/90 kW | 300-500 kg/h
FT95 | 110/132 kW | 800-1500 kg/h

Range features

• Screw construction: alloy screw processed with specialized treatment for improved wear resistance and extended service life.
• Drive and stability: feeding, extrusion and cutting systems use variable-frequency speed regulation for controlled torque and stable operation.
• Control and data: touch-screen control with customizable language; storage for up to 24 process recipes.

Applications and typical products

• Puffed snacks
• Snack pellets (2D/3D)
• Breakfast cereals and cornflakes
• Bugles / Doritos / tortilla chips
• Nutritious rice & instant rice
• Breadcrumbs (panko)
• Pet food (dog/cat)
• Cereal bars, granola, energy bars

Additional notes
Images and descriptions illustrate representative products for the FT series. Each product category can be produced in multiple shapes; custom die design is supported. Product trials and sample production are available for a fee.

Technical specifications / caractéristiques

• Model series: FT series
• Brand: Jinan Arrow
• Main components: feeding system, extrusion system, cutting system, heating system, lubrication system, control system
• Screw diameter options: 20D, 28D, 32D
• Common models: FT63, FT75, FT95
• FT63 host power: 30/55 kW — output: 100-200 kg/h
• FT75 host power: 75/90 kW — output: 300-500 kg/h
• FT95 host power: 110/132 kW — output: 800-1500 kg/h
• Screw material and treatment: alloy material with special processing for wear resistance and long life
• Drive and control: variable-frequency speed regulation on feeding/extrusion/cutting systems; touch-screen control, customizable control language, data storage up to 24 recipes
