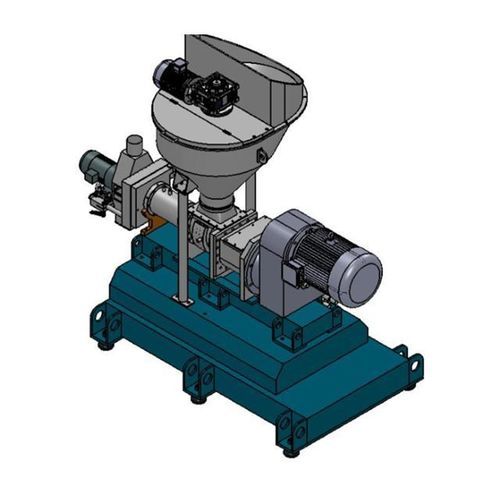

Pet food food extruder ACE series

compact

Product Description
The ACE cold extrusion pet food processing machine is designed for low-temperature production of high-protein and meat-based pet foods (dry, semi-wet, meat pieces and strips, canned textures). Based on American extrusion technology, the line integrates driving, feeding, extrusion, moulding/cutting and control systems to maintain low process temperatures and product integrity.

Technical Specifications

• ACE50 — Main Motor: 2.2 kW; Capacity: 10–50 kg/h; Size: 900 × 500 × 1600 mm
• ACE500 — Main Motor: 15 kW; Capacity: 260–500 kg/h; Size: 2300 × 1200 × 2500 mm
• ACE1000 — Main Motor: 30 kW; Capacity: 600–1200 kg/h; Size: 3200 × 1250 × 2800 mm

Applications and Features

• Product types: low-temperature dry kibble, semi-wet products, meat pieces, meat strips, components for canned pet food.
• Materials accepted: fresh meat, meat meal, soy/bean powder, protein concentrates, cereals and added micronutrients.
• Adjustable cold extrusion temperature with targeted cooling media to control product temperature during extrusion.
• Changeable moulds and recipe adjustments allow production of various shapes and textures (granules, bars/strips, flakes) and different hardness levels.
• Modular construction: driving, feeding, extrusion, moulding/cutting and control subsystems for integration in industrial lines.

Model Characteristics

• ACE50 — Compact unit for pilot runs and small-scale production: 2.2 kW motor, 10–50 kg/h.
• ACE500 — Mid-capacity unit for industrial batches: 15 kW motor, 260–500 kg/h.
• ACE1000 — High-capacity unit for continuous production: 30 kW motor, 600–1200 kg/h.
