Scissor lift table

hydraulicmobileloading

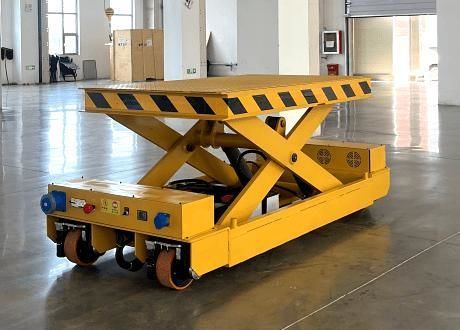

This transfer trolley with hydraulic scissor lift is specially designed for glass manufacturing enterprises, offering high flexibility and precision in material handling. It features three operation modes: XY linear travel, 45-degree diagonal travel, and on-the-spot rotation, enabling smooth and efficient movement in constrained spaces. For processes requiring lateral positioning, the steering wheels are equipped with a one-touch 90-degree function, allowing the trolley to move directly sideways with ease. Integrated with a hydraulic scissor lift, the trolley ensures stable and reliable vertical lifting for safe and accurate handling of delicate glass products. - Model: Transfer Trolley with Hydraulic Scissor Lift - Platform Dimensions: 2000*1200mm - Loading Capacity: 4000KG - Lowered Height: 520mm - Lifting Stroke: 850mm - Lifting Speed: 1m/min - Hydraulic Power Unit: DC 48V, 3 kW - Control Method: Remote control - Power Supply: DC12V-130AH Note: The above parameters are for reference only, all products can be customized. 1. Multi-Mode Travel Supports three operation modes: XY linear travel, 45° diagonal travel, and on-the-spot rotation, ensuring flexible handling for various working conditions. 2. One-Touch Side Shift Equipped with a one-touch 90° steering function, enabling quick lateral movement to maximize space utilization and operational efficiency. 3. High-Precision Positioning Accurate travel and steering control, ideal for production processes requiring precise positioning of glass products. 4. Hydraulic Scissor Lift Integrated hydraulic scissor lifting mechanism ensures smooth and stable vertical lifting for safe glass handling. 5. Robust Structure with High Load Capacity Reinforced steel frame provides excellent load-bearing capacity, suitable for large or heavy glass products. 6. User-Friendly Operation Simple control system with optional wireless remote control or touch panel for enhanced operator convenience. 7. Comprehensive Safety Features Equipped with emergency stop, limit protection, and anti-slip design to ensure maximum safety for operators and materials.
