Fixed scissor lift platform SJG11-5.0

hydraulicfor industrial applicationsexplosion-proof

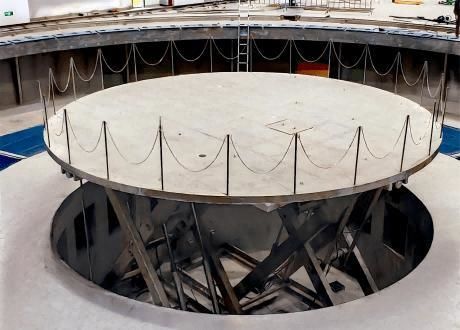

The 316L Stainless Steel Underwater Scissor Lift Platform is expertly designed for underwater applications, combining durability and precision engineering. Made from premium 316L stainless steel, it is ideal for installing stone models and experimental equipment, enabling simulations of various water depth conditions. The scissor mechanism ensures exceptional stability and high load capacity, making it reliable for demanding underwater tasks. Equipped with a state-of-the-art touchscreen control system, users can conveniently set target heights and monitor the platform’s real-time position. This innovative solution meets the needs of research and engineering projects requiring precision and reliability in underwater environments. - Model: SJG11-5.0 - Loading Capacity: 11000kg - Platform Diameter: 10000mm - Stops: 2/2 - Travel Height Range: 1350mm-6500mm - Lifting Speed: 0.4m/min - Self Height: 1350mm - Weight: 32,000kg - Application: Designed for underwater applications Note: The above parameters are for reference only, all products can be customized. - Structure & Material: Hydraulic transmission with a dual-span, single-layer design, made from 316L stainless steel; diameter 10m (adjustable), lifting stroke ≥5.3m, load capacity ≥11 tons. - Control & Monitoring: On-site and remote control, equipped with dehumidification and anti-salt systems, with height monitoring accuracy ≤±5mm via dual underwater sensors. - Safety Features: Emergency stop, overload, explosion-proof, and anti-fall mechanisms with hydraulic telescopic support (≥4 points). - Performance: Lifting speed ≥0.4m/min, platform load ≥1t/m², overall flatness error ±5mm. - Design Details: Platform thickness ≥6mm, waterproof sealing, detachable railings (21 posts), and integrated mooring rings.
