- Spring constant testing machine
- Jinan Hensgrand Instrument Co.,Ltd

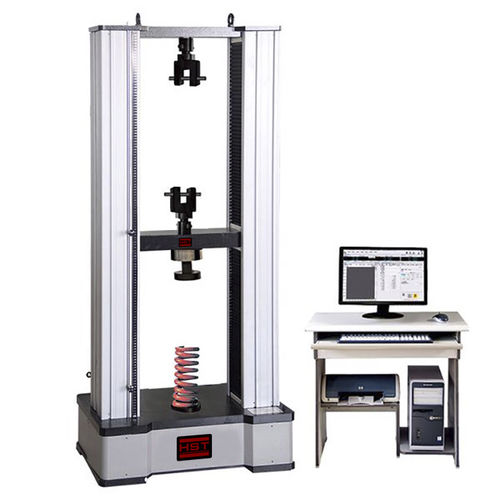

Tension and compression testing machine HST-TLS-Dspring constantcomputer-controlledautomatic
Add to favorites
Compare this product
Characteristics
- Test type
- tension and compression, spring constant
- Operating mode
- computer-controlled, automatic, semi-automatic
- Test material
- spring
- Sector
- for laboratory, for research and development, industrial, for the automotive industry, for the construction industry, for the textile industry
- Technology
- digital
- Configuration
- vertical
- Other characteristics
- double-column
Description
This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
Parameter:
Max. Testing force
10KN
20KN
50kN
100kN
Control type
Digital display
Accuracy
0.5class
Testing range
2%～100%F·S
Relative error of test force indication
≤±1%
Relative error of displacement indication
≤±1%
Displacement display resolution
0.01mm
Deformation indication error
≤±（50+0.15L）um
Speed range
0.05-500 mm/min
Tensile and compression space
700mm
Diameter of compression plate
100mm
Power
AC220V±10%，50Hz
