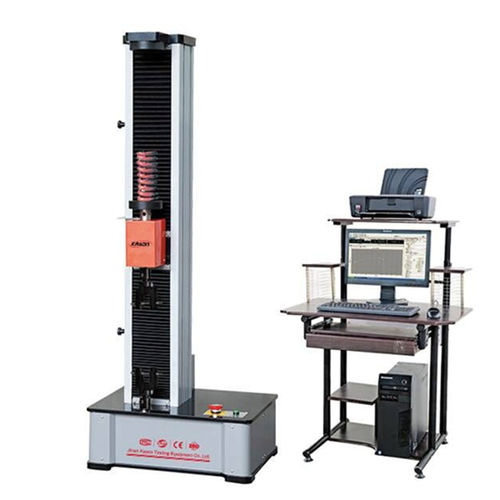

Compression testing machine TLW series

tensiletensioncomputer-controlled

This series testing machine is mainly used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, disp lacement and rigidity test and analysis. Main Technical Parameters Structure Single Colum Type Double space models Control Method computer control Load Accuracy Class0.5 Load Range 2%～100%F·S Test force relative error value ≤±1%% Displacement relative error value ≤±1% Displacement display resolution 0.01mm Deformation indication error ≤±（50+0.15L）um Speed adjustment range 0.01-500mm/min(stepless speed) Speed relative error ≤±1% Tensile test space Standard600mmHeightening800mm Compression test space Standard600mmHeightening800mm
