Force testing machine TNS compressionuniversalcompression resistance
Add to favorites
Compare this product
Characteristics
- Test type
- force, compression, universal, compression resistance, tensile, bending, tension, fatigue, shearing, tension/compression, shearing resistance, durability, tensile strength, torque
- Operating mode
- automatic, manual, semi-automatic
- Test material
- for sheet metal, material, for plastics, for rubber, for building materials, for springs, for electronic components, for cement, for paper, for wire ropes and strands, for composite materials, for textiles
- Sector
- for the automotive industry, for laboratory, for research and development, industrial, for workshops, for the packaging industry, for the construction industry, for the electronics industry, for quality control, for the aeronautical industry, for the textile industry
- Technology
- electromechanical, mechanical, digital, electronic, dynamic
Description

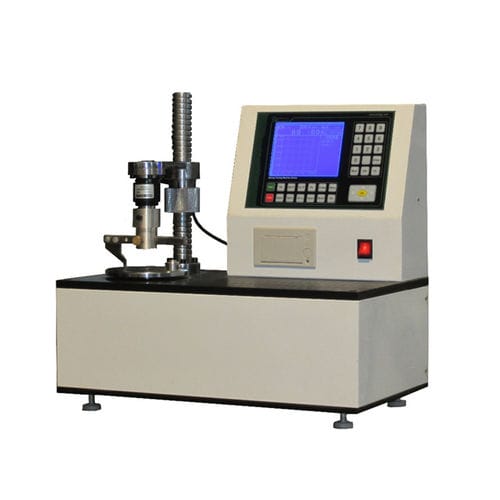

TNS series vertical manual torsion Spring Testing Machine applies to twist spring, spring, elastic elements of rotor rolls and friction of the torsional horn, the test of torsional moment. It is the ideal testing equipment of industrial and mining enterprises, the technical supervision, inspection arbitration, scientific research institutes, universities and quality inspection unit and other departments.
Main Specs :
Max Test force
(N/mm)
50
100
200
500
1000
2000
5000
Test range
2%-100%
Test machine class
1 class
Test force Min reading value
0.1 Nmm
Angle min reading value
0.1°
Torque indicate relative error
≤ ±1%
Spring test length
0-70mm
Deformation error
≤±（50+0.15l）
Test angle range
0-±9999.9
Torque dish diam
130mm
130mm
Loading method
Manual Loading
Power supply
AC 220V/50Hz
