1.Application:

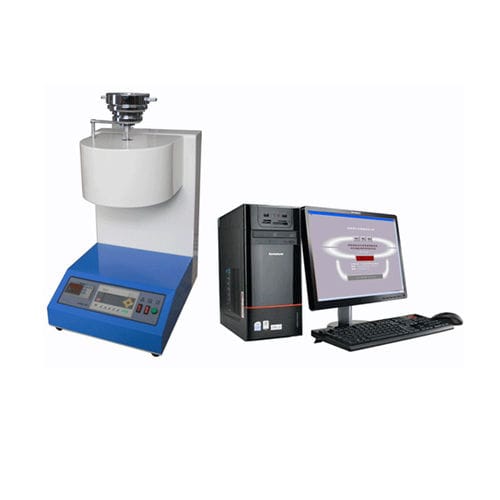

Melt Flow Index tester suitable for determining the melt flow rate (MFR) of thermoplastic plastic such as polyethylene,POM,ABS resin.
2. Characteristics:
1. Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2. Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3. The machine uses dual control-- main engine control combined with computer display operation
4. Has the temperature calibration, test data storage and print function
3.Technical parameters:
ModelXNR-400C
Measuring range0.1-800.00g/10min(MFR)
0.1-800.00 cm3/10min(MVR)
Precision of temperature controlroom temperature - 450°c
Precision of temperature±0.2°c
Precision of time0.1s
Displacement precision0.01mm
Loadfull load
Cutting modemanual, by time, automatic
Charging barrel internal diameter9.550mm ± 0.025mm
Charging barrel length160mm
Mouth dieTungsten carbide, L: 8.000mm±0.025mm,
Internal diameter: 2.095mm ±0.005mm
Power0.45 KW
Power supplyAC220V, 50Hz
