Compression testing machine HST XJXD

universaltensilebending

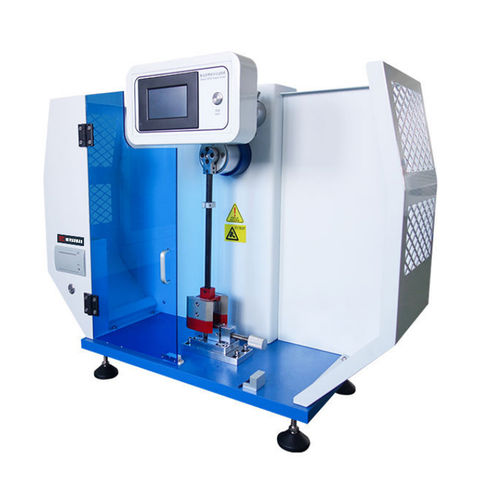

This Impact Tester is is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen. Standard: ISO179,ISO180, ASTM D256 and the equivalent. Specifications Elevation in advance 150°(accuracy 0.01°) 150°(accuracy 0.01°) impact speed 3.5m/s,2.9m/s 3.5m/s,3.8m/s Measurement resolution 0.01J Pendulum center distance Izod: 335mm; Charpy:230mm Pendulum angle 150° Measurement accuracy ±0.1% Resolution 0.03% Impact blade to the surface distance of the tongs 22mm±0.05mm Corner radius of striking Izod : R=0.8mm; Charpy:R=2mm±0.5mm Output mode Printout Power AC220V±10% 50HZ Features: 1.Cantilever beam and simply supported beam are integrated impact, no need to disassemble the clamp and sample holder 2.High-precision intelligent controller, equipped with liquid crystal display, can read data intuitively and accurately 3.Using imported high-resolution digital encoder, angle test accuracy is higher and more stable 4.The impact hammer and imported ball bearings conforming to the principle of aerodynamics greatly reduce the friction 5.loss caused by the machine 6.Automatically calculate the final result, the test data can save 24 groups of data and average 7.English operation interface can be selected, test results can be selected in units such as J/m,KJ/㎡,kg-cm/cm, ft-ib/in, etc.
