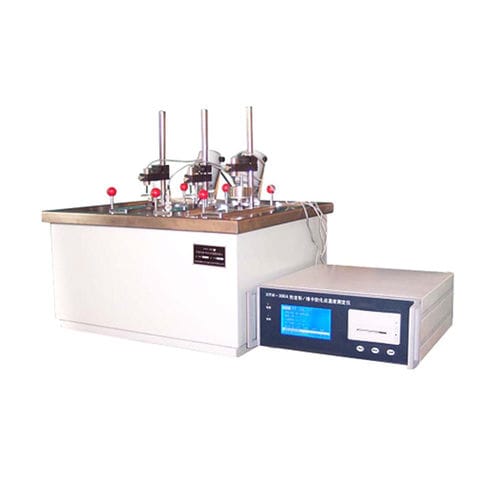

Temperature tester XWB-300A

softening pointlaboratorybenchtop

Vicat Softening Point Apparatus is used to determine heat distortion temperature and vicat softeningtemperature of high polymer materials, plastic,rubber etc, as an index of controlling quality and identifying thermal property of new products. Sample is immerged in liquid and fixed by a pressure needle. Heat liquid with specified heating rate, sample becomes soft and will distort under the pressure. The liquid temperature is Vicat softening temperature. Standard: ISO2507,ISO75,ISO306 Main Technical Parameters: Structure - Table type Temperature control range - room temperature—300°C Temperature rise speed - 120±1°C/h 50±1°C/h Temperature accuracy - ±0.5°C Temperature resolution - 0.1°C deformation range - 0—3mm Deformation accuracy - 0.01mm Range of load - 0.75N—50N Test space - 60—120 mm (Adjustable continuously ) Display - LCD display Data print - with built-in printer
