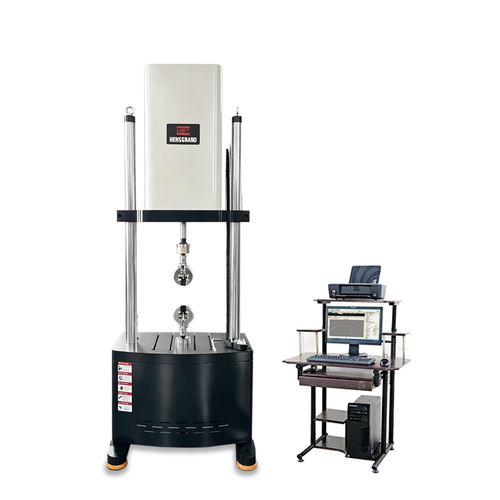

Fatigue testing machine HST-EF seriesuniversalcompressiontensile
Add to favorites
Compare this product
Characteristics
- Test type
- universal, compression, tensile, bending, tensile stress relaxation, tension, shearing, constant load, fatigue, tension and compression, force, tensile strength, compression resistance
- Operating mode
- computer-controlled, automatic, semi-automatic
- Test material
- for textiles, material, for plastics, for building materials, for springs, for cables, for composite materials, for electric vehicles, for plastic film, for tubes, for leather, for adhesive tape, for pipes, for bars and tubes, for electronic products, for round bars, for flexible materials, hose, for rubber
- Sector
- for the automotive industry, for laboratory, industrial, for research and development, for the construction industry, for railway applications, for workshops, for the beverage industry, for the textile industry, for the optical industry, for the petroleum industry, for telecommunications, for the pharmaceutical industry
- Technology
- electromechanical, mechanical, servo-hydraulic, electronic, dynamic
- Configuration
- vertical
- Other characteristics
- static, double-column
Description
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine could also complete the fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts, auto parts and other static mechanical performance test. It is a popular machine for the university, research institutes, enterprises and other experimental equipment to test.
Standards:
ISO 14801 ISO 6475 ASTM F1717 ASTM F2077 ISO 7206 ASTM 1440 ASTM F543 ASTM F1800 ISO 14879 ASTM F3140-17 ASTM D7028 ASTM D5992 ASTM D5023 ASTM D5024 ASTM D5026 ASTM D5418 ISO 6721-4 ISO 6721-5 ISO 1099 ASTM 466-96 ASTM 468-90 ASTM E606 ASTM D3479 ASTM E466 ASTM E2368 EUR 22281 EN ASTM E647 ASTM E399 ASTM E1820 ASTM 399-17 ISO 6892 ASTM D412 ASTM D882 ASTM 527-2 ASTM 527-3 ISO 7800 ASTM A938 ASTM D1043 ASTM D5279 ASTM F383 ISO 5835 ISO 9268 ISO 80369-1 ISO 6721-12
Main parameters
Maximum static force
2kN
5kN
10kN
20kN
50kN
Maximum dynamic force
±2kN
±5kN
±10kN
±20kN
±50kN
Maximum static force
2kN
Maximum dynamic force
±2kN
Load range
2%-100%FS
Testing machine accuracy
±0.5%
Amplitude stroke
±50mm
Displacement measuring range
0～100mm(±50mm)
Displacement resolution
0.001mm
Displacement accuracy
±0.5%
Sine wave test Frequency
Standard:0.01～20Hz;Optional: 0.01～50Hz/100Hz;
Test waveform
Sine wave, triangle wave, square wave,etc
Maximum tensile space
0～570mm
Distance between columns
460mm
Machine frame sizes
778X711X1655mm
Power supply
AC 380V± 10%, 50Hz
