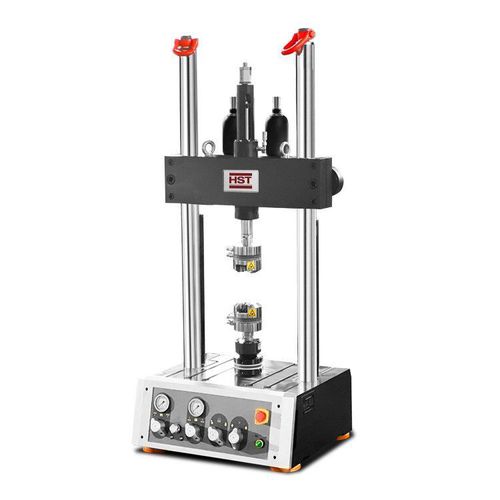

Fatigue testing machine HST-HFT25TA

universalcompressiontensile

Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine could also complete the fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts, auto parts and other static mechanical performance test. It is a popular machine for the university, research institutes, enterprises and other experimental equipment to test. Axial The axial configuration of the tabletop test system can be used to perform accurate and repeatable fatigue life and fracture growth studies, as well as tension, bending and compression tests of biomaterials. It runs tests up to ±25 kN (5.5 kip) with standard displacements of ±50 mm (± 2 in.), and can easily be configured for monotonic or fatigue testing. Specifications Maximum dynamic force ±5KN ±10KN ±25KN Maximum static force 5KN 10KN 25KN Load range 2%-100%FS Testing machine accuracy Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% Actuator dynamic stroke 120mm Displacement measuring range 0～120mm(±60mm) Displacement measurement resolution 0.001mm Deformation indication relative error ±0.5% Force coaxiality ≤5% Frequency Range Standard: 0.01～30HZ; Optional: 0.01～50HZ; 0.01～100HZ(Static pressure support cylinder) Test space 827mm Test width 460mm Power supply AC 380V± 10%, 50Hz
