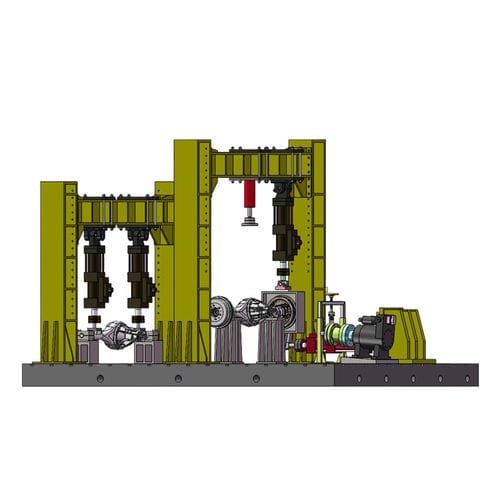

Fatigue testing machine HSTPLW - 1000

springfor automobile suspension partselectro-hydraulic

Electro-hydraulic servo HSTPLW - 1000 trailer suspension test system used to carry out the trailer suspension assembly and key parts and components, such as suspension, rear axle in the former, The machine is mainly suitable for static compression molding test and dynamic one-way pulsation fatigue test of various large-scale components such as bridges, trusses, automobile chassis, front and rear axles, locomotive frame, chassis and various concrete structural parts. The machine has the remarkable features of reliable design, simple operation, energy saving and low operating cost. Various specifications of actuators ( 50KN 100KN 250KN 500KN 1000KN ) are fully factory-tested or supplied separately to the user for complete testing of multi-station (multi-spot). They can also be used with any host. Use to keep the value accurate and stable. Spesification Maximum test force ( KN ) 500 1000 Frequency range ( Hz ) 2-8 2-8 Maximum displacement of pulsator ( ml/ time) 400 800 counter Accumulated operation 100 times, 1 word Actuator specification ( KN ) 25 , 50 , 100 , 250 , 500 , 1000 Main motor power ( KW ) About 11 About 22 Mainframe dimensions ( mm ) 1500*800*2100 1500*1000*2200 Control cabinet ( mm ) 450*570*1740 Weight ( kg ) 3600 4000
