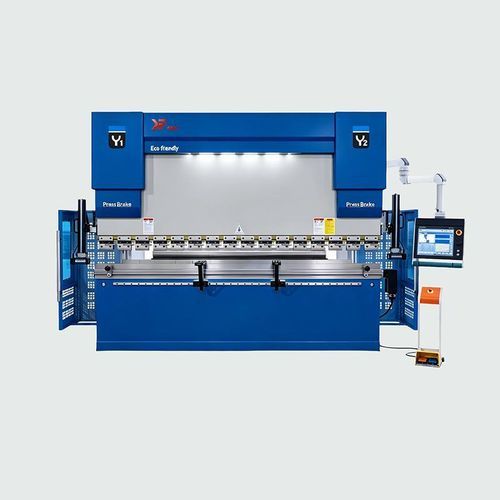

Electro-hydraulic press brake KPH series

CNClargeprecision

Short description

• Electro-hydraulic CNC press brake KPH series for precision sheet bending. Capacity range 800–3200 kN with worktable lengths from 2500 mm up to 6000 mm. DA-53T Delem-based touchscreen CNC, Bosch Rexroth hydraulic assembly and optional servo motor drive.

Features

• CNC System: DA-53T touchscreen solution based on Delem UI for angle programming, intuitive operation and reliable program execution.
• Servo motor option: Main servo motor available to reduce energy consumption and extend service life.
• Mechanical compensation: Motor-driven integral compensation wedges to adjust workbench accuracy.
• Tooling and quick change: Upper punch mounted on a slider with precision quick-clamping; lower die uses a double-V concentric structure for fast tool changes.
• Hydraulic system: Bosch Rexroth integrated hydraulic assembly for compact layout and strong sealing.
• Bending support / CNC control: Delem series CNC angle programming with accurate parameter calculation and stable bending control.

Technical specifications (table)
Model | Nominal pressure (kN) | Worktable length (mm) | Distance between columns (mm) | Throat depth (mm) | Slide stroke (mm) | Maximum opening height (mm) | Rapid downward speed (mm/s) | Working feed speed (mm/s) | Rapid return speed (mm/s) | Main motor power (kW) | Overall dimensions (L×W×H mm)
KHP80T/2500 | 800 | 2500 | 2000 | 320 | 120 | 420 | 110 | 15 | 110 | 7.5 | 3000×1350×2200
KHP100T/2500 | 1000 | 2500 | 2000 | 400 | 160 | 480 | 100 | 10 | 100 | 7.5 | 3000×1450×2350
KHP100T/3100 | 1000 | 3100 | 2600 | 400 | 160 | 480 | 100 | 10 | 100 | 7.5 | 3600×1450×2400
KHP100T/4000 | 1000 | 4000 | 3200 | 400 | 160 | 480 | 100 | 10 | 100 | 7.5 | 4500×1500×2500
KHP125T/3100 | 1250 | 3100 | 2600 | 400 | 160 | 480 | 100 | 9 | 90 | 7.5 | 3600×1600×2450
KHP125T/4000 | 1250 | 4000 | 3200 | 400 | 160 | 480 | 100 | 9 | 90 | 7.5 | 4500×1600×2550
KHP160T/3100 | 1600 | 3100 | 2600 | 400 | 160 | 500 | 100 | 9 | 90 | 11 | 3600×1650×2600
KHP160T/4000 | 1600 | 4000 | 3200 | 400 | 160 | 500 | 100 | 9 | 90 | 11 | 4500×1700×2800
KHP160T/6000 | 1600 | 6000 | 4800 | 400 | 160 | 500 | 100 | 9 | 90 | 11 | 6500×1950×3250
KH200T/3100 | 2000 | 3100 | 2600 | 400 | 200 | 540 | 90 | 8.5 | 80 | 18.5 | 3600×1750×2800
KHP200T/4000 | 2000 | 4000 | 3200 | 400 | 200 | 540 | 90 | 8.5 | 80 | 18.5 | 4500×1750×2900
KHP200T/6000 | 2000 | 6000 | 4800 | 400 | 200 | 540 | 90 | 8.5 | 80 | 18.5 | 6500×2050×3400
KHP250T/3100 | 2500 | 3100 | 2600 | 400 | 200 | 550 | 90 | 8.5 | 80 | 18.5 | 3600×1750×2900
KHP250T/4000 | 2500 | 4000 | 3200 | 400 | 200 | 550 | 90 | 8.5 | 80 | 18.5 | 4500×1750×3100
KHP250T/6000 | 2500 | 6000 | 4800 | 400 | 200 | 550 | 90 | 8.5 | 80 | 18.5 | 6500×2200×3650
KHP320T/3100 | 3200 | 3100 | 2600 | 400 | 200 | 550 | 80 | 8.5 | 70 | 22 | 3600×1800×2950
KHP320T/4000 | 3200 | 4000 | 3200 | 400 | 200 | 550 | 80 | 8.5 | 70 | 22 | 4500×1850×3200
KHP320T/6000 | 3200 | 6000 | 4800 | 400 | 200 | 550 | 80 | 8.5 | 70 | 22 | 6500×2350×3800

Characteristics / technical specifications

• CNC controller: DA-53T touchscreen solution based on Delem UI for angle programming and stable operation.
• Hydraulic system: Bosch Rexroth integrated hydraulic assembly for compact design and strong sealing.
• Power options: Servo motor available as main power for energy-saving and durability.
• Mold design: Upper punch on slider with precision quick-clamping; lower die double-V concentric for fast tool changes.
• Mechanical compensation: Motor-driven integral compensation wedges to adjust workbench accuracy.
• Bending support: Delem CNC angle programming with accurate parameter calculation.
• Price example (FOB): US $0.5 - 9,999 per piece.
• Available models/series: Multiple KHP/KPH models listed above.
