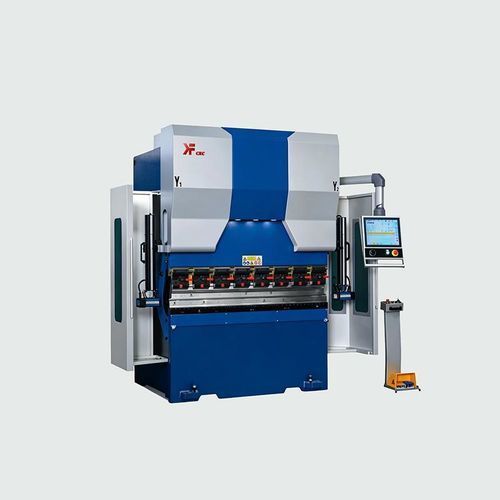

Servo-electric press brake KEP

CNC6-axishigh-performance

Overview
This all-electric servo press brake KEP offers direct numerical programming, multi-axis linkage and fast feed positioning to improve bending efficiency, accuracy and repeatability compared with conventional hydraulic machines. The oil-free design eliminates hydraulic oil, reducing environmental impact. With approximately 80% energy savings versus traditional hydraulic press brakes, it is suited for stable, efficient sheet-metal production across multiple industries.

Key features

• CNC system: intuitive interface with direct input of backgauge and angle parameters for each bend step.
• Dual servo main motor control: Y1 and Y2 axes driven by SYNTEC servo motors for precise synchronized motion and reduced operating costs.
• Mold options: interchangeable tooling sets to match various bending profiles and part requirements.
• High-precision backgauge: four-axis servo-driven back gauge with ball screw and linear guide; beam height adjustable by CNC.

CNC Press Brake Technical Parameters Table

• 1. Bending Force: 400 KN
• 2. Table Length: 1250 mm
• 3. Column Spacing: 970 mm
• 4. Bed Mechanism: C-type
• 5. Slide Stroke: 200 mm
• 6. Throat Depth: 330 mm
• 7. Maximum Slide Opening Height: 500 mm
• 8. Idle Speed: 200 mm/sec
• 9. Working Speed: 40 mm/sec
• 10. Return Speed: 200 mm/sec
• 11. Back Gauge X-axis Stroke: 400 mm
• 12. Number of Control Axes: Y1, Y2, X, R, Z1, Z2
• 13. Y-axis Motor Power: 11KW × 2
• 14. Instantaneous Power During Feed: 15 KW
• 15. Overall Dimensions (L×W×H): 1340 × 1310 × 2170 mm
• 16. Machine Weight: 2.8 T

Price
Fob Price range: US $0.5 - 9,999 / Piece

Technical specifications

• Bending Force: 400 KN
• Table Length: 1250 mm
• Column Spacing: 970 mm
• Bed Mechanism: C-type
• Slide Stroke: 200 mm
• Throat Depth: 330 mm
• Maximum Slide Opening Height: 500 mm
• Idle Speed: 200 mm/sec
• Working Speed: 40 mm/sec
• Return Speed: 200 mm/sec
• Back Gauge X-axis Stroke: 400 mm
• Control Axes: Y1, Y2, X, R, Z1, Z2
• Y-axis Motor Power: 11KW × 2
• Instantaneous Power During Feed: 15 KW
• Overall Dimensions (L×W×H): 1340 × 1310 × 2170 mm
• Machine Weight: 2.8 T
• Energy saving: approx. 80% energy saving vs. traditional hydraulic machines
• Oil-free operation: no hydraulic oil required (environmentally friendly)
• Typical applications: server racks, HVAC, elevators, kitchen equipment, aluminum plates, solar water heaters, automotive & bicycle parts, audio equipment, home appliances
