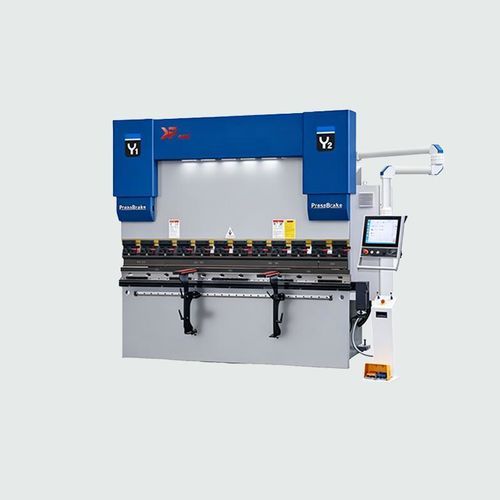

Servo-hydraulic press brake KTP seriesCNCautomatichigh-power
Add to favorites
Compare this product
Characteristics
- Operation
- servo-hydraulic
- Control
- CNC
- Other characteristics
- precision, automatic, high-performance, high-power, synchronized
- Press force
Max.: 6,000 kN
Min.: 400 kN
- Folding length
Max.: 6,000 mm
(236.2 in)Min.: 1,600 mm
(63 in)- Engine power
Max.: 45 kW
(61.18 hp)Min.: 5.5 kW
(7.48 hp)- Machine length
Max.: 6,500 mm
(256 in)Min.: 1,800 mm
(71 in)- Machine width
Max.: 2,600 mm
(102.36 in)Min.: 1,200 mm
(47.24 in)- Machine height
Max.: 3,800 mm
(149.61 in)Min.: 1,800 mm
(70.87 in)- Daylight
Max.: 620 mm
(24 in)Min.: 320 mm
(13 in)- Maximale stroke
Max.: 300 mm
(12 in)Min.: 100 mm
(4 in)
Description
Short description
1. CNC System
The TP10S is a 10-inch touchscreen CNC control optimized for press brakes. Driven via CAN bus, it provides accurate positioning and simplified wiring. By entering plate thickness and bend angle, the system calculates bend depth and unfolded dimensions automatically. Integrated deflection and angle compensation maintains dimensional consistency. Supports multi-axis expansion, multi-step circular bending, extensive program storage and production statistics for process control.
2. Torsion-shaft synchronous structure
The torsion shaft is produced by forging and hammering, delivering high strength, good elastic behavior and an adjustable design for synchronous ram movement.
3. Electrical system
Safety interlock cuts power when the door is opened. System includes high-performance servo motor drives and Schneider Electric components for control reliability.
4. Hydraulic system
Hydraulic power is driven by a leading domestic motor brand, combined with high-quality cylinders and premium hydraulic components for sustained performance and service life.
Technical table
Type | Nominal Force (KN) | Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open (mm) | Power (kW) | Dimension LxWxH (mm)
KTP40T/1600 | 400 | 1600 | 1200 | 200 | 100 | 320 | 5.5 | 1800x1200x1800
KTP40T/2000 | 400 | 2000 | 1600 | 200 | 100 | 320 | 5.5 | 2300x1280x2100
KTP50T/2500 | 500 | 2500 | 1900 | 200 | 100 | 320 | 5.5 | 2850x1800x2200
KTP63T/2500 | 630 | 2500 | 1960 | 250 | 120 | 345 | 5.5 | 2850x1800x2300
KTP63T/3200 | 630 | 3200 | 2600 | 250 | 120 | 345 | 5.5 | 3500x1800x2300
KTP80T/2500 | 800 | 2500 | 1960 | 250 | 120 | 350 | 5.5 | 2900x1800x2350
KTP80T/3200 | 800 | 3200 | 2600 | 250 | 120 | 350 | 5.5 | 3700x1800x2400
KTP80T/4000 | 800 | 4000 | 3200 | 250 | 120 | 350 | 5.5 | 4300x1800x2400
KTP100T/2500 | 1000 | 2500 | 1960 | 320 | 120 | 380 | 7.5 | 2900x1800x2450
KTP100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3800x1800x2500
KTP100T/4000 | 1000 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4400x1800x2500
KTP125T/2500 | 1250 | 2500 | 1960 | 320 | 120 | 380 | 7.5 | 3000x1800x2500
KTP125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3800x1850x2500
KTP125T/4000 | 1250 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4400x1850x2500
KTP160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 450 | 11 | 3900x1900x2650
KTP160T/4000 | 1600 | 4000 | 3200 | 320 | 200 | 450 | 11 | 4500x1900x2650
KTP160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 450 | 11 | 5500x2000x2700
KTP160T/6000 | 1600 | 6000 | 4800 | 320 | 200 | 450 | 11 | 6500x2000x3100
KTP200T/3200 | 2000 | 3200 | 2600 | 350 | 250 | 500 | 15 | 3900x2000x2650
KTP200T/4000 | 2000 | 4000 | 3200 | 350 | 250 | 500 | 15 | 4500x2000x2700
KTP200T/5000 | 2000 | 5000 | 4000 | 350 | 250 | 500 | 15 | 5500x2000x2700
KTP200T/6000 | 2000 | 6000 | 4800 | 350 | 250 | 500 | 15 | 6500x2000x2800
KTP250T/3200 | 2500 | 3200 | 2600 | 350 | 250 | 520 | 18.5 | 3900x2050x2850
KTP250T/4000 | 2500 | 4000 | 3200 | 350 | 250 | 520 | 18.5 | 4500x2050x2850
KTP250T/5000 | 2500 | 5000 | 4000 | 350 | 250 | 520 | 18.5 | 5500x2050x2850
KTP250T/6000 | 2500 | 6000 | 4800 | 400 | 250 | 520 | 18.5 | 6500x2150x2900
KTP300T/3200 | 3000 | 3200 | 2600 | 400 | 250 | 520 | 22 | 4000x2100x2980
KTP300T/4000 | 3000 | 4000 | 3200 | 400 | 250 | 520 | 22 | 4500x2100x2980
KTP300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 520 | 22 | 5500x2150x2980
KTP300T/6000 | 3000 | 6000 | 4800 | 400 | 250 | 520 | 22 | 6500x2150x2980
KTP400T/4000 | 4000 | 4000 | 3200 | 400 | 250 | 540 | 30 | 4500x2300x3450
KTP400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 540 | 30 | 5500x2300x3450
KTP400T/6000 | 4000 | 6000 | 4800 | 400 | 250 | 540 | 30 | 6500x2300x3500
KTP500T/4000 | 5000 | 4000 | 3200 | 400 | 300 | 620 | 37 | 4500x2450x3600
KTP500T/5000 | 5000 | 5000 | 4000 | 400 | 300 | 620 | 37 | 5500x2450x3600
KTP500T/6000 | 5000 | 6000 | 4800 | 400 | 300 | 620 | 37 | 6500x2500x3700
KTP600T/4000 | 6000 | 4000 | 3200 | 400 | 300 | 620 | 45 | 4500x2500x3700
KTP600T/6000 | 6000 | 6000 | 4800 | 400 | 300 | 620 | 45 | 6500x2600x3800
Technical specifications / Key features
- Fob Price: US $0.5 - 9,999 / Piece
1. CNC System
The TP10S is a 10-inch touchscreen CNC control optimized for press brakes. Driven via CAN bus, it provides accurate positioning and simplified wiring. By entering plate thickness and bend angle, the system calculates bend depth and unfolded dimensions automatically. Integrated deflection and angle compensation maintains dimensional consistency. Supports multi-axis expansion, multi-step circular bending, extensive program storage and production statistics for process control.
2. Torsion-shaft synchronous structure
The torsion shaft is produced by forging and hammering, delivering high strength, good elastic behavior and an adjustable design for synchronous ram movement.
3. Electrical system
Safety interlock cuts power when the door is opened. System includes high-performance servo motor drives and Schneider Electric components for control reliability.
4. Hydraulic system
Hydraulic power is driven by a leading domestic motor brand, combined with high-quality cylinders and premium hydraulic components for sustained performance and service life.
Technical table
Type | Nominal Force (KN) | Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open (mm) | Power (kW) | Dimension LxWxH (mm)
KTP40T/1600 | 400 | 1600 | 1200 | 200 | 100 | 320 | 5.5 | 1800x1200x1800
KTP40T/2000 | 400 | 2000 | 1600 | 200 | 100 | 320 | 5.5 | 2300x1280x2100
KTP50T/2500 | 500 | 2500 | 1900 | 200 | 100 | 320 | 5.5 | 2850x1800x2200
KTP63T/2500 | 630 | 2500 | 1960 | 250 | 120 | 345 | 5.5 | 2850x1800x2300
KTP63T/3200 | 630 | 3200 | 2600 | 250 | 120 | 345 | 5.5 | 3500x1800x2300
KTP80T/2500 | 800 | 2500 | 1960 | 250 | 120 | 350 | 5.5 | 2900x1800x2350
KTP80T/3200 | 800 | 3200 | 2600 | 250 | 120 | 350 | 5.5 | 3700x1800x2400
KTP80T/4000 | 800 | 4000 | 3200 | 250 | 120 | 350 | 5.5 | 4300x1800x2400
KTP100T/2500 | 1000 | 2500 | 1960 | 320 | 120 | 380 | 7.5 | 2900x1800x2450
KTP100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3800x1800x2500
KTP100T/4000 | 1000 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4400x1800x2500
KTP125T/2500 | 1250 | 2500 | 1960 | 320 | 120 | 380 | 7.5 | 3000x1800x2500
KTP125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3800x1850x2500
KTP125T/4000 | 1250 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4400x1850x2500
KTP160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 450 | 11 | 3900x1900x2650
KTP160T/4000 | 1600 | 4000 | 3200 | 320 | 200 | 450 | 11 | 4500x1900x2650
KTP160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 450 | 11 | 5500x2000x2700
KTP160T/6000 | 1600 | 6000 | 4800 | 320 | 200 | 450 | 11 | 6500x2000x3100
KTP200T/3200 | 2000 | 3200 | 2600 | 350 | 250 | 500 | 15 | 3900x2000x2650
KTP200T/4000 | 2000 | 4000 | 3200 | 350 | 250 | 500 | 15 | 4500x2000x2700
KTP200T/5000 | 2000 | 5000 | 4000 | 350 | 250 | 500 | 15 | 5500x2000x2700
KTP200T/6000 | 2000 | 6000 | 4800 | 350 | 250 | 500 | 15 | 6500x2000x2800
KTP250T/3200 | 2500 | 3200 | 2600 | 350 | 250 | 520 | 18.5 | 3900x2050x2850
KTP250T/4000 | 2500 | 4000 | 3200 | 350 | 250 | 520 | 18.5 | 4500x2050x2850
KTP250T/5000 | 2500 | 5000 | 4000 | 350 | 250 | 520 | 18.5 | 5500x2050x2850
KTP250T/6000 | 2500 | 6000 | 4800 | 400 | 250 | 520 | 18.5 | 6500x2150x2900
KTP300T/3200 | 3000 | 3200 | 2600 | 400 | 250 | 520 | 22 | 4000x2100x2980
KTP300T/4000 | 3000 | 4000 | 3200 | 400 | 250 | 520 | 22 | 4500x2100x2980
KTP300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 520 | 22 | 5500x2150x2980
KTP300T/6000 | 3000 | 6000 | 4800 | 400 | 250 | 520 | 22 | 6500x2150x2980
KTP400T/4000 | 4000 | 4000 | 3200 | 400 | 250 | 540 | 30 | 4500x2300x3450
KTP400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 540 | 30 | 5500x2300x3450
KTP400T/6000 | 4000 | 6000 | 4800 | 400 | 250 | 540 | 30 | 6500x2300x3500
KTP500T/4000 | 5000 | 4000 | 3200 | 400 | 300 | 620 | 37 | 4500x2450x3600
KTP500T/5000 | 5000 | 5000 | 4000 | 400 | 300 | 620 | 37 | 5500x2450x3600
KTP500T/6000 | 5000 | 6000 | 4800 | 400 | 300 | 620 | 37 | 6500x2500x3700
KTP600T/4000 | 6000 | 4000 | 3200 | 400 | 300 | 620 | 45 | 4500x2500x3700
KTP600T/6000 | 6000 | 6000 | 4800 | 400 | 300 | 620 | 45 | 6500x2600x3800
Technical specifications / Key features
- CNC control: TP10S 10-inch touchscreen, CAN-bus drive, automatic bend depth and unfolded dimension calculation, deflection and angle compensation, multi-axis expansion and multi-step circular bending, large program capacity and production statistics.
- Torsion shaft: Forged and hammered shaft body offering high strength, elastic performance and adjustability for synchronous operation.
- Electrical: Servo motor drives and Schneider Electric components; safety interlock (power cut when door opened).
- Hydraulic: High-quality domestic motor, cylinders and hydraulic components for durability.
- Model range: KTP series from ~400 kN to 6000 kN with bed lengths from 1600 mm to 6000 mm and power from 5.5 kW to 45 kW; consult the technical table above for detailed parameters.
