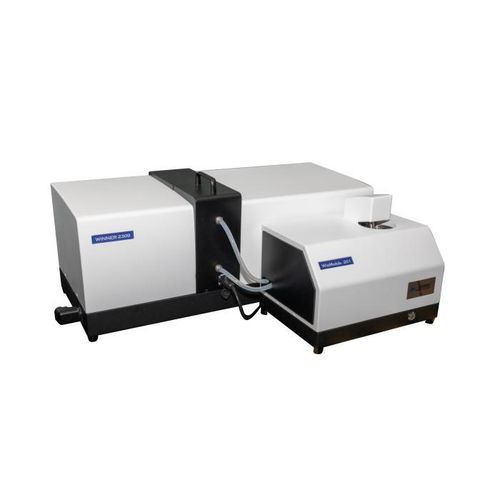

Laser diffraction particle size analyzer Winner2309B WinModule-201

opticallaser light scatteringfor the food industry

Overview
Winner2309B WinModule-201 is an intelligent, fully automatic wet-dispersion laser particle size analyzer based on Mie and Fraunhofer scattering principles. It integrates a high-sensitivity photoelectric detection system with an imported Canon lens optical path to ensure measurement accuracy and repeatability. The instrument is designed for research institutes, university laboratories, R&D centers and quality control laboratories in industrial applications.

Key Feature Summary

• Measurement range: 0.01–2800 μm
• Principles: Mie and Fraunhofer scattering
• Fastest test time: 10 seconds
• Sampling frequency: up to 10 kHz
• Operation mode: SOP fully automated
• Number of channels: 108

Dispersion and Sample Handling

• Ultrasonic dispersion: 40 kHz, 60 W (time adjustable)
• Mechanical stirring: 0–3000 rpm (adjustable)
• Circulation: flow 1–8 L/min; pump power 120 W
• Wet module: ultrasonic, mechanical stirring and built-in circulation
• Sample tank volume: 600 ml; sample injector: WinModule-201

Optics & Light Source

• Main laser: 639 nm, >2 mW
• Auxiliary laser: 405 nm, >2 mW
• Optical bench: automatic alignment
• Optical path: reverse Fourier (folded optical path), test angle range 0.015–145°
• Laser safety class: Class 1

Software Functions

• Analysis models: free distribution, R-R, log-normal and category statistical models
• Statistical comparison: compare multiple test results across batches, processing times or conditions
• Data processing: intelligent selection of representative results and statistical analysis
• Custom outputs: any characteristic size between D1 and D100, cumulative percentages larger/smaller than a size, cumulative percentages by range
• Export formats: Word, Excel, BMP, TXT, PDF
• One-click operation: automatic water intake, air removal, dispersion, testing, cleaning and data processing
• Interface languages: Chinese and English (additional languages can be added)
• GMP: optional

Advantages

• Automatic optical-path alignment using precise hybrid stepper motors for micron-level positioning and stable measurements.
• High-stability circulating dispersion reduces sedimentation and agglomeration; coordinated ultrasound and circulation control for flexible dispersion intensity.
• Modular wet/dry design with shortened circulation path to limit large-particle precipitation and reduce maintenance.
• Software supports unconstrained free-fitting for multimodal particle group analysis and provides high resolution below 2 μm.
• Patented reverse Fourier (folded) optical-path design extends test angle range and improves measurement range and resolution; sealed optical path for dust protection.

Applications

• Cement, ceramics
• Pharmaceuticals and medicine
• Emulsions, coatings, dyes, chemicals, catalysts
• Drilling fluids, abrasives, lubricants, brazing materials
• Biological samples, food additives, pesticides, explosives
• Graphite, photosensitive materials, fuels, inks
• Metal and non-metal powders, calcium carbonate, kaolin
• Coal-water slurry and other powder–liquid systems

Patent Technology & Notes
The optical bench design and three-dimensional optical alignment system are patent-protected. Applications of Mie scattering, dual-laser orthogonal configuration, sealed sample cuvette, powder dispersion pump and wet circulation design are covered by multiple patents.

Technical Specifications

• Model: Winner2309B WinModule-201
• Measurement range: 0.01–2800 μm
• Principle: Mie and Fraunhofer scattering
• Test speed: fastest 10 seconds
• Sampling frequency: up to 10 kHz
• Channels: 108
• Accuracy (CRM D50): ≤ 0.5%
• Repeatability (CRM D50): ≤ 0.5%
• Dispersion: ultrasonic 40 kHz/60 W; mechanical 0–3000 rpm; circulation 1–8 L/min, 120 W
• Sample tank volume: 600 ml
• Light sources: 639 nm (>2 mW) and 405 nm (>2 mW)
• Optical bench alignment: automatic
• Optical path: reverse Fourier, angle range 0.015–145°
• Laser safety class: Class 1
• Dimensions: main unit 870 × 340 × 380 mm; wet module 415 × 280 × 335 mm
• Net weight: main unit 32 kg; wet module 15 kg
• Operation mode: SOP fully automated
• Software outputs: interval and cumulative distributions, graphs, data export (Word, Excel, BMP, TXT, PDF)
