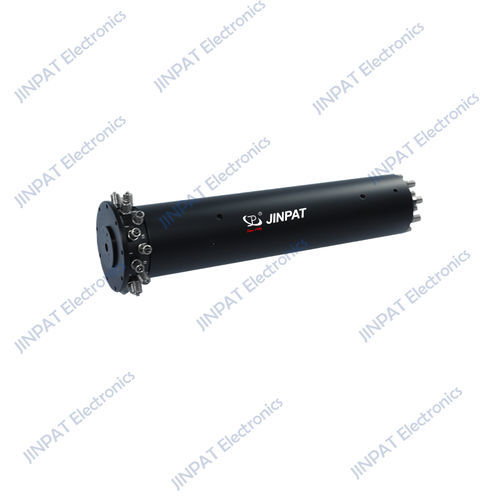

Air rotary union LPPA-LM0101 LM

for vacuumfor pneumatic applicationsfor robots

Product Overview
Compact pneumatic rotary union LPPA-LM0101 for air and vacuum media. Aluminum alloy housing (black) designed for a single gas passage (1 in / 1 out) and low-torque rotary transmission of pneumatic lines. Suitable for installations requiring a compact footprint and rotation up to 300 rpm.

Technical Table (key parameters)

• Max. Operating Pressure: Positive Pressure 10 Bar; Vacuum -95 kPa
• Working Speed: 0–300 rpm
• Medium Type: Air, Vacuum
• Working Temperature: -20°C ~ +100°C
• Passages: 1 in / 1 out
• Work Humidity: ≤85% RH
• Joint Thread / Port: M5 (suitable for ∅2 ~ ∅6 mm tubing)
• Housing Material: Aluminum Alloy (black)
• No-load Torque: ≤0.3 N.m
• IP Rating: IP51

Applications & Notes

• Designed for pneumatic and vacuum rotary connections where a single gas passage is required.
• Common uses: rotating manifolds, indexing tables, rotary actuators with pneumatic supply.
• Install with compatible tubing (∅2–∅6 mm) and ensure operating conditions remain within specified pressure, temperature and humidity limits.
• Regular inspection recommended for sealing and torque performance according to application duty cycle.
