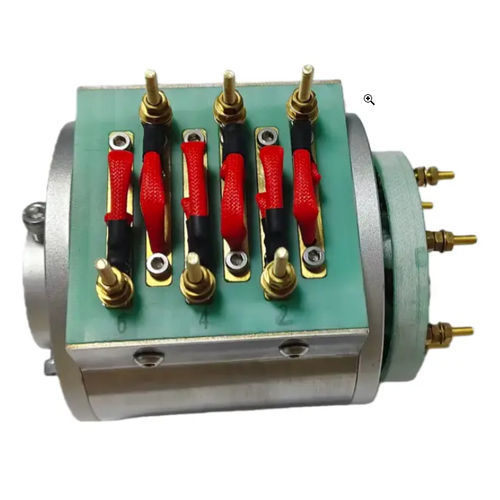

Carbon brush slip ring CBDHK025-6S

industrialcompositealuminum alloy

Short Description
This carbon brush slip ring Ingiant CBDHK025-6S is a precision replacement designed as a direct substitute for LTN SH series models. The unit matches the original LTN mounting interfaces and dimensions to minimize mechanical adjustments during replacement, reducing downtime and service costs. It provides stable power and signal transmission for industrial applications. Carbon brushes are graphite-based composite for reduced wear and longer maintenance intervals. A metal shielding ring lowers electromagnetic interference and simplifies EMI protection.

Product Details

• Model: CBDHK025-6S
• Total circuits: 6 circuits (6 × 25A)
• Rated voltage: 380V
• Contact material: Precious metal
• Wire specification: M5 copper stud for stator/rotor, current capacity 25A
• Protection class: IP51
• Housing material: Aluminum alloy
• Rotation speed: 0 ~ 1500 rpm
• Operating temperature: -20°C ~ +80°C
• Operating humidity: 60% RH or higher

Technical specifications

• Model designation: CBDHK025-6S
• Circuits and current rating: 6 channels, each rated 25A
• Electrical ratings: Rated voltage 380V; dielectric strength ≥1000V/50Hz (between two circuits)
• Contact & conductor: Precious metal contacts; M5 copper stud terminations for stator and rotor
• Mechanical: Rotation speed up to 1500 rpm; aluminum alloy housing
• Protection & environment: Protection class IP51; operating temperature range -20°C to +80°C; suitable for 60% RH or higher
• Insulation: Insulation resistance >500MΩ @100V DC (at normal temperature)
• Durability & maintenance: Graphite-based composite carbon brushes for low wear; metal shielding ring for EMI protection
