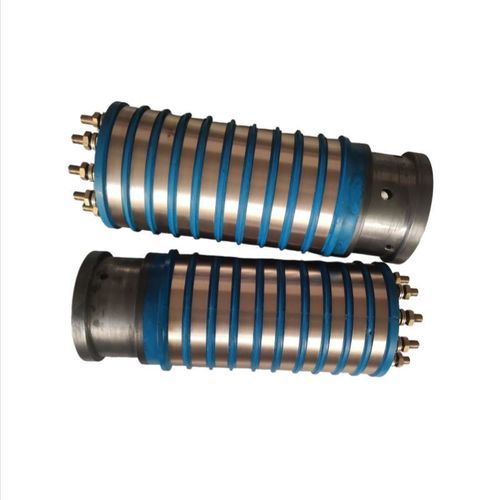

Electric motor slip ring

textilealuminum alloy

Collector ring for burnishing machines The collector ring for burnishing machines is a critical component in burnishing equipment, primarily functioning to enable current or signal transmission between rotating and stationary components. During the operation of the burnishing machine, its rotating components such as drums require continuous power supply to sustain functions like heating. Through sliding contact with brushes, the collector ring steadily delivers external power to the rotating parts, ensuring the normal operation of the equipment. Typically composed of conductive rings, insulating materials, and metal brackets, it features excellent conductivity, strong wear resistance, and high stability, making it widely used in burnishing machines across the textile and printing/dyeing industries. Collector rings for burnishing and electric ironing machines are primarily suitable for mechanical equipment, conductive devices, and rotating machinery, with the capability to conduct electricity during rotation. These collector rings are fabricated from aluminum alloy with surface oxidation treatment, featuring an operating temperature range of -30°C to 80°C, a current capacity of up to 200A, a voltage rating of 220V, and dimensional tolerances controlled within 0.2mm. Technical Specifications / Features: - Material: Aluminum alloy with surface oxidation treatment - Operating temperature: -30°C to 80°C - Current capacity: up to 200A - Voltage rating: 220V - Dimensional tolerance: within 0.2mm - Excellent conductivity, strong wear resistance, high stability - Application: Burnishing machines, pipe-cutting machinery, textile and printing/dyeing industries - Channels: 2-10
