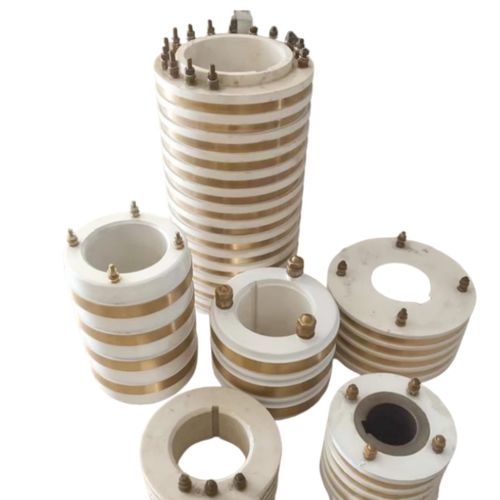

Electric motor slip ring

for marine applicationscarboncopper

Carbon Brush Slip Ring: Customizable - Material of Copper Rings: Tin bronze, phosphor bronze; characterized by high wear resistance and excellent electrical conductivity. - Material of Matched Brushes: Imported materials with silver content, offering anti-interference capability, high conductivity, and stable/reliable power and signal transmission. - MIL-Level Concentricity & Balance: Manufactured with high-precision machining equipment, errors are controlled within ±0.01-0.03mm. The concentricity and balance of inner/outer circles far surpass those of similar market products, ensuring smooth operation of the slip ring without jumping. - Lead Wires: Equipped with terminal blocks for easy installation and maintenance. - Optional Acrylic Glass Cover Housing: Provides effective protection and enhances safety/reliability. Product Details Carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure. - Good conductivity, long service life. - Brush running, good sliding contact, no overheating, no noise, low loss. - In the process of operation, the surface of collector ring is uniform, moderate and stable. - The pressure of each carbon brush is uniform and stable, and the structure ensures the stability of the carbon brush and smooth contact. - When the slip ring works, it can transmit signal and current stably. Technical Parameters - Mechanical Technique Indicators: Working Life: 10 million RPM reference value (Depending on work), Rated Speed: 150 rpm, Working Temperature: -30℃~-80℃, Working Humidity: 0~85%RH, Contact Material: Metal, Shell Material: Engineering Plastic, Moving Torque: 0.05N.m+0.02N.m/6 way, Protection Level: IP51 - Electrical Technique Indicators: Rated Voltage: 0~240VAC/VDC, Insulation Resistance: ≥300MΩ/300VDC, Wire Specification: Reference Selection Table, Wire Length: Standard Length 300mm (customizable), Insulation Strength: 300VAC@50Hz, 60S, Dynamic Resistance Variation: <0.01Ω
