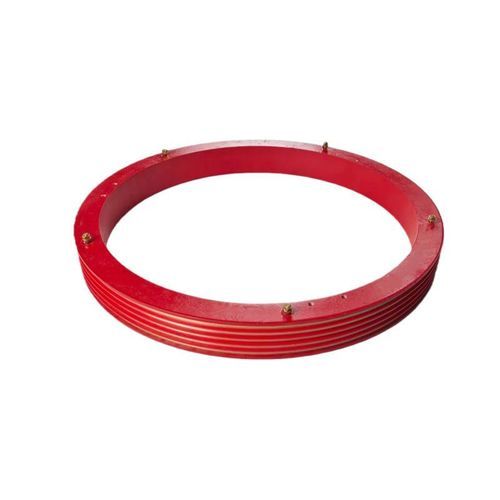

Through-bore slip ring DHK420-5

industrialcustom-madelarge-diameter

Overview
Designed for large-scale rotating machinery, this carbon brush slip ring provides power and stable signal transmission via dedicated channels that minimize interference. Suitable for flexible installation and continuous operation at rated speed.

Short description

• DHK420-5 large-bore carbon brush slip ring
• Inner diameter: 420 mm; Outer diameter: 483 mm; Height: 49.5 mm
• Color: Red
• Customization: Available
• Channels: 5
• Rated current: 1 A per channel (5 channels)
• Rated voltage: 24 V
• Rated maximum speed: 600 rpm
• Maximum tangential velocity: 904 m/min

Product details
Engineered to fit large-bore rotating equipment with flexible mounting options. The unit transmits both power and signals, isolating dedicated signal channels to reduce cross-talk and electromagnetic interference. It supports continuous operation up to 600 rpm and stable signal transmission at 24 V with 1 A per channel.

Technical specifications

• Model: DHK420-5
• Type: Large-bore carbon brush slip ring
• Inner diameter (ID): 420 mm
• Outer diameter (OD): 483 mm
• Height: 49.5 mm
• Number of channels: 5
• Rated current: 1 A per channel (5 channels)
• Rated voltage: 24 V
• Rated maximum speed: 600 rpm
• Maximum tangential velocity: 904 m/min
• Color: Red
• Customization: Available
• Application: Large-scale rotating machinery requiring combined power and signal transmission with anti-interference channels
