Fiber optic slip ring DHS200-47

EthernetUSBhybrid

Short Description

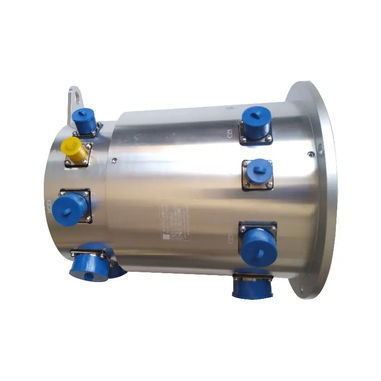

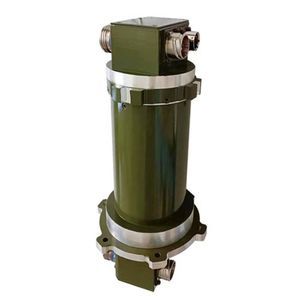

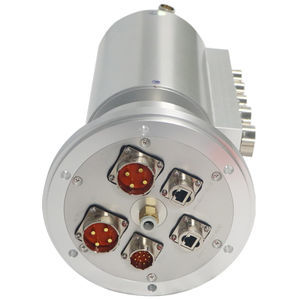

DHS200-47 series aviation plug slip ring

Overview
DHS200-47 is a slip ring with aviation plugs on both the rotor and stator, which facilitates loading, unloading, replacement and installation, eliminates the need for welding wires, and improves stability and reliability.

Main features

• Both the rotor and stator are equipped with aviation plugs for quick connection
• Easy to maintain and replace
• IP51, IP54 (standard), IP65, IP68 optional
• Uses advanced precious metal cluster brush multi-point contact to ensure reliable contact with extremely low friction
• Suitable for demanding precision and rotary signal/power transmission applications

Typical applications
Industrial machine processing centers; rotary tables; heavy equipment towers; cable reels; packaging equipment; magnetic clutches; process control equipment; rotary sensors/encoders; emergency lighting equipment; robotic joints; exhibition/display turntables; medical rotary devices; revolving doors.

Our advantage

• Company advantage: Ingiant covers more than 8000 m² of R&D and production space with a professional design and manufacturing team (150+ staff); complete mechanical processing equipment including CNC centers; strict inspection and testing standards meeting national military GJB standard and quality management system; holds multiple technical patents (including utility model and invention patents)
• Product advantage: Capable of mixing and transmitting multiple signals (Ethernet, fiber optic, high-frequency, gas and electricity, USB, etc.); dust-proof and waterproof contact materials use gold contacts to reduce friction and extend life; imported sealing materials for strong conductivity, anti-interference and no leakage; shell material options include stainless steel and aluminum alloy for corrosion and salt-spray resistance
• Customization: Supply possible from single-unit quantities; special shapes and special types are possible on request; encapsulated miniature slip rings are used in many global applications

Standard product outline drawing
Standard outline drawing and product outline images available for product configuration and mounting reference.

Technical specifications

• Model: DHS200-47
• Number of circuits: 47
• Working temperature: -40°C ~ +65°C
• Rated current: can be customized
• Working humidity: ≤70%
• Rated voltage: 0 ~ 240 VAC/VDC
• Protection level: IP54 (options IP51, IP65, IP68 available)
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Housing material: Aluminum Alloy
• Insulation strength: 1500 VAC @ 50Hz, 60s, 2mA
• Electrical contact material: Precious metal
• Dynamic resistance variation: ≤10 MΩ
• Lead wire specification: Colored Teflon insulated & tinned stranded flexible wire
• Rotating speed: 0 ~ 600 rpm
• Lead wire length: 500 mm + 20 mm
