Hydraulic slip ring DHS165-6-1F-2S-2Y

fiber optichybridindustrial

Short Description

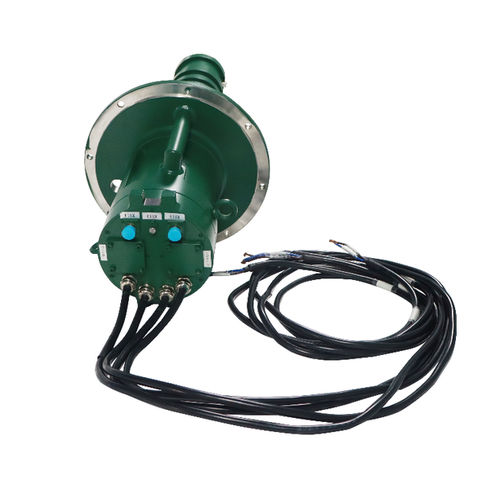

DHS165-6-1F-2S-2Y hybrid slip ring providing combined transmission of electrical power/signals, optical fiber and fluids (gas/liquid). The unit integrates 6 electrical circuits, 1 fiber-optic channel, 2 signal channels and 2 liquid channels using pneumatic/hydraulic and optical paths to deliver multiple media to a rotating interface. Designed for industrial rotating systems that require simultaneous transmission of electrical, optical and fluid media.

Product drawing
Product drawing and product images are provided to illustrate the dimensions and configuration of the DHS165-6-1F-2S-2Y hybrid slip ring. Refer to the drawings on the product page for mounting interfaces and dimensional tolerances.

Our advantage

• Modular design with options for full customization to meet application-specific requirements.
• Multiple Ingiant slip ring series adapted to varied industrial uses; supports tailor-made solutions and integration with existing systems.
• Manufacturer specifications: long operational life (over 20 years / >800 million revolutions), use of high-grade components, configurable electrical and fluid interfaces.

Technical parameters (from product table)
Model: DHS165-6-1F-2S-2Y
Number of circuits: 6 electrical circuits
Working temperature: -40℃ ~ +65℃
Rated current: configurable / customizable
Working humidity: ≤70%
Rated voltage: 0 ~ 240 VAC/VDC
Protection level: IP54
Insulation resistance: ≥1000 MΩ @ 500 VDC
Housing material: Aluminum alloy
Insulation strength: 1500 VAC @ 50 Hz, 60 s, 2 mA
Electrical contact material: Precious metal
Dynamic resistance variation: < 10 MΩ
Lead wire specification: Colored Teflon insulated & tinned stranded flexible wire
Rotating speed: 0 ~ 600 rpm
Lead wire length: 500 mm + 20 mm

Features / Technical specifications

• Model: DHS165-6-1F-2S-2Y
• 6 electrical channels
• 1 fiber-optic channel
• 2 signal channels
• 2 liquid channels (supports pneumatic/hydraulic transmission)
• Operating temperature: -40℃ to +65℃
• Rated voltage: 0–240 VAC/VDC
• Rated current: configurable/customizable
• Protection class: IP54
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Insulation strength: 1500 VAC @ 50 Hz for 60 s (2 mA)
• Electrical contacts: precious metal
• Dynamic resistance variation: < 10 MΩ
• Lead wires: colored Teflon insulated and tinned stranded flexible wire, length 500 mm + 20 mm
• Housing: aluminum alloy
• Max rotating speed: up to 600 rpm
