Fiber optic slip ring DHS090-50-1F

electro-opticalfor robotsmarine

Short description

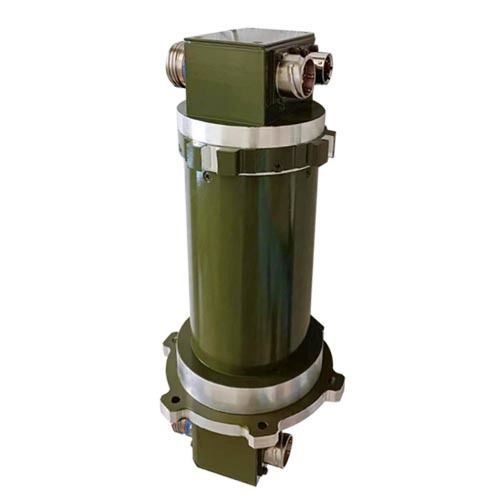

Military aviation plug optoelectronic slip ring designed for rotating optical and electrical transmission in airborne, shipborne and ground defence platforms. Aviation-style plug connectors are fitted on both rotor and stator. Outer diameter 90 mm. Supports single-mode and multi-mode optical fiber and simplifies field replacement to avoid fiber welding and improve system reliability.

Features

• Aviation plug connectors on both rotor and stator for fast mating and replacement.
• Single-channel optoelectronic transmission combining fiber optic and electrical circuits.
• Field-replaceable design for simplified maintenance and installation.
• Ingress protection options from IP51 to IP68 (standard IP54).
• Precious-metal multi-point cluster brush for low-friction, reliable electrical contact under demanding conditions.

Typical applications
Airborne radar turntables, airborne early warning systems, military armored vehicle turrets, shipborne radar turntables, ship electric thrusters, missile launch systems, military robotics and other defence and aerospace systems requiring rotating optical/electrical interfaces.

Main parameters

• Model: DHS090-50-1F
• Number of electrical circuits: 50
• Working temperature: -40°C to +65°C
• Rated current: customizable
• Working humidity: ≤70%
• Rated voltage: 0–240 VAC/VDC
• Protection level: standard IP54 (IP51–IP68 optional)
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Housing material: aluminum alloy
• Rotating speed: 0–600 rpm

Our advantage

• Product advantages: cost-effective modular design, IP protection options suitable for harsh environments, low-maintenance precious metal contacts, integration options for high-frequency channels, HD video transmission and continuous 360° rotation.
• Company advantages: extensive patent portfolio and experienced R&D and production teams to support customization and quality control.
• After-sales and warranty: 12-month warranty for product quality (from date of sale, excluding human damage); maintenance or replacement offered for covered defects.

Technical specifications

• Model: DHS090-50-1F
• Outer diameter: 90 mm
• Channel type: single-channel optoelectronic (supports single-mode and multi-mode fiber)
• Electrical circuits: 50
• Rated voltage: 0–240 VAC/VDC
• Rated current: customizable
• Protection level: standard IP54, IP51–IP68 optional
• Operating temperature: -40°C to +65°C
• Operating humidity: up to 70%
• Housing material: aluminum alloy
• Electrical contact: precious metal multi-point cluster brush
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Insulation strength: 1500 VAC @ 50 Hz, 60 s, 2 mA
• Dynamic resistance variation: ≤10 MΩ
• Rotational speed: 0–600 rpm
• Lead wire: colored Teflon-insulated, tinned stranded flexible wire, length 500 mm + 20 mm
• Typical applications: defence, radar, airborne and shipborne systems, military robotics and armored vehicle turrets
• Warranty: 12 months (product quality, non-human damage)
