Brushless motor E series
EC12 Vpermanent magnet

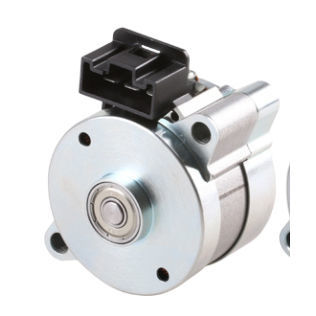

Brushless motor - E series - Johnson Electric - EC / 12 V / permanent magnet
Brushless motor - E series - Johnson Electric - EC / 12 V / permanent magnet
Brushless motor - E series - Johnson Electric - EC / 12 V / permanent magnet - image - 2
Brushless motor - E series - Johnson Electric - EC / 12 V / permanent magnet - image - 3
Brushless motor - E series - Johnson Electric - EC / 12 V / permanent magnet - image - 4
Add to favorites
Compare this product

Characteristics

Type
brushless, EC
Voltage
12 V
Configuration
permanent magnet, compact
Applications
for the automotive industry
Other characteristics
high-torque
Power

100 W, 170 W, 230 W, 450 W
(0.14 hp, 0.23 hp, 0.31 hp, 0.61 hp)

Intensity

Max.: 37 A

Min.: 1.4 A

Torque

0.4 Nm, 0.42 Nm, 1 Nm, 3.5 Nm
(0.295025 ft.lb, 0.309776 ft.lb, 0.737562 ft.lb, 2.581468 ft.lb)

Rotational speed

2,200 rpm, 3,850 rpm, 5,000 rpm, 5,500 rpm
(13,823.0077 rad.min-1, 24,190.2634 rad.min-1, 31,415.9265 rad.min-1, 34,557.5192 rad.min-1)

Diameter

40 mm, 51.2 mm, 64 mm, 90 mm
(1.57 in, 2.02 in, 2.52 in, 3.54 in)

Operating temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The Johnson Electric EC motor series provides an innovative platform of brushless motors for automotive engineers designing products ranging from engine cooling, transmission and engine management. The controllability, high efficiency, long life, and low noise characteristics of this motor technology are custom engineered to meet the needs of specialized applications. The platform motors below are examples used in the applications noted. Contact us for sample availability and your custom engineering requirements.
