EC motor E series
brushless12 V18 V

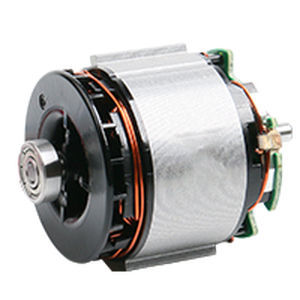

EC motor - E series - Johnson Electric - brushless / 12 V / 18 V
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 2
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 3
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 4
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 5
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 6
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 7
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 8
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 9
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 10
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 11
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 12
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 13
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 14
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 15
EC motor - E series - Johnson Electric - brushless / 12 V / 18 V - image - 16
Add to favorites
Compare this product

Characteristics

Type
brushless, EC
Voltage
12 V, 18 V, 14.4 V, 32V
Configuration
aluminum-frame, compact, open-frame type
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency, high-torque, high-power
Power

Min.: 2.54 W
(0 hp)

Max.: 1,019 W
(1.39 hp)

Intensity

Min.: 0.66 A

Max.: 15 A

Torque

Min.: 0.013 Nm
(0.009588 ft.lb)

Max.: 0.415 Nm
(0.306088 ft.lb)

Rotational speed

Min.: 1,795 rpm
(11,278.3176 rad.min-1)

Max.: 22,500 rpm
(141,371.6694 rad.min-1)

Diameter

Min.: 36 mm
(1.42 in)

Max.: 65 mm
(2.56 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 70 °C
(158 °F)

Description

The EC motor series provides a platform of brushless motors for engineers designing products ranging from HVAC valves to power tools. Automotive applications are under development for transmission, engine cooling, and engine management. The controllability, high efficiency, long life, and low noise characteristics of this motor technology can be custom engineered to meet the needs of specialized applications. The platform motors below are examples used in the applications noted. The pdf product datasheet provides performance details of these motors. Contact us for sample availability and your custom engineering requirements.
