Brushless motor E series
ECDC110 V

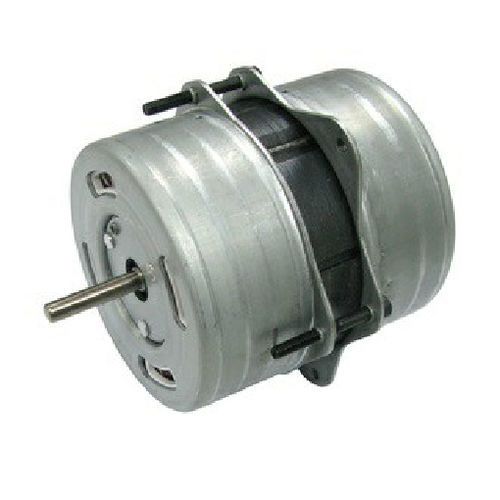

Brushless motor - E series - Johnson Electric - EC / DC / 110 V
Brushless motor - E series - Johnson Electric - EC / DC / 110 V
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 2
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 3
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 4
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 5
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 6
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 7
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 8
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 9
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 10
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 11
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 12
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 13
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 14
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 15
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 16
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 17
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 18
Brushless motor - E series - Johnson Electric - EC / DC / 110 V - image - 19
Add to favorites
Compare this product

Characteristics

Type
DC, brushless, EC
Voltage
220 V, 110 V, 120V
Other characteristics
high-efficiency, low-noise, high-voltage
Power

Max.: 178 W
(0.24 hp)

Min.: 68 W
(0.09 hp)

Intensity

Max.: 1,490 mA

Min.: 1.25 mA

Torque

Max.: 0.485 Nm
(0.357718 ft.lb)

Min.: 0.0925 Nm
(0.068224 ft.lb)

Rotational speed

Max.: 20,200 rpm
(126,920.3432 rad.min-1)

Min.: 2,880 rpm
(18,095.5737 rad.min-1)

Diameter

40 mm, 60 mm, 84 mm, 90 mm
(1.57 in, 2.36 in, 3.31 in, 3.54 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

The EC motor series provides a platform of brushless motors for engineers designing products ranging from HVAC valves to power tools. Automotive applications are under development for transmission, engine cooling, and engine management. The controllability, high efficiency, long life, and low noise characteristics of this motor technology can be custom engineered to meet the needs of specialized applications. The platform motors below are examples used in the applications noted. The pdf product datasheet provides performance details of these motors. Contact us for sample availability and your custom engineering requirements.
